Emuge
C591A601.0124
Emuge C591A601.0124
Specifications
| Thread Size | M24x3 |
|---|---|
| Thread Standard | M |

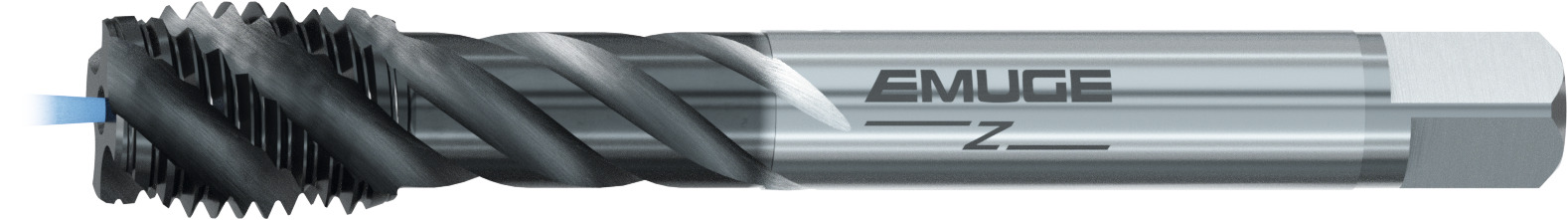

| Short Description | M24x3 - Tap - Enorm Z -IKZ -PM - GLT-1 |
| Tap Chamfer Lght | 2 -3 P |
| Tap Chamfer Form | C |
| Applicable Material | Long Chipping Materials |
| Country of Origin | Germany |
| Coolant Supply Property | Axial |
| Coolant Fed | Yes |
| Flute Direction | RH |
| Shank Tolerance | h9 |
| Flute Helix Angle | 45° |
| Thread Tolerance Class | 6HX |
| Length Group | DIN Length |
| Application | Spiral Flute Taps |
| Shank Standard | DIN |
| Cutting Edge Material | HSSE-PM |
| Material Grade | HSSE-PM |
