Emuge
C616A601.4036

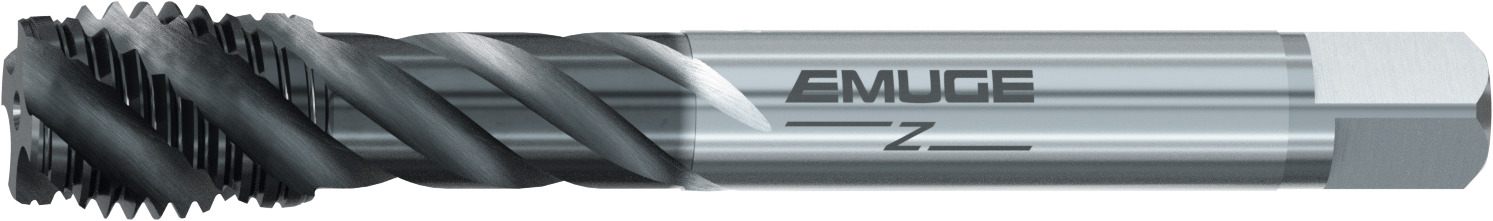

Emuge C616A601.4036
Specifications
| Thread Size | 1/4"-19 |
|---|---|
| Short Description | G 1/4-19 - Pipe Tap - Enorm Z - PM - GLT-1 - Whitworth |
| Flute Helix Angle | 45° |
| Thread Tolerance Class | X |
| Thread Standard | G |
| Thread Length | 22 mm |
| Shank Tolerance | h9 |
| Length Group | DIN Length |
| Flute Direction | RH |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Tap Chamfer Form | C |
| Application | Pipe Taps |
| Cutting Edge Material | HSSE-PM |
| Tap Chamfer Lght | 2 -3 P |
| Material Grade | HSSE-PM |
| Country of Origin | Germany |
| Applicable Material | Steel Alloys, Stainless Steel, Cast Iron, Copper Alloys |
