Emuge
CU20K560.5015
Emuge CU20K560.5015
Specifications
| Type | Rekord B-Steel-L |
|---|---|
| Coating/Finish | GLT-1 |
| Number Of Flutes | 3.0 |
| Diameter (Inch) | 46150.0 |
| Thread Size | 5/8-11 |
| Overall Length (Inch) | 4.331 |
| Material | HSSE |

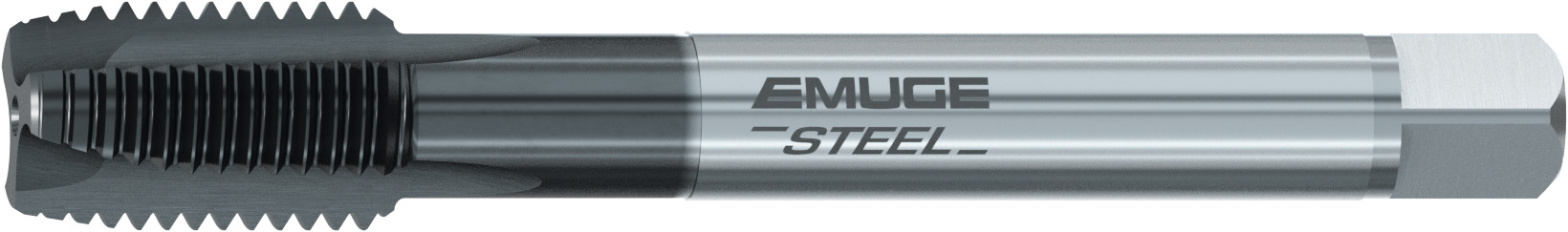

| Short Description | 5/8-11 - Tap - Rekord B Steel-L - LH - GLT-1 |
| Thread Standard | UNC |
| Thread Tolerance | 3B |
| Chamfer | Plug |
| Tap Square (Decimal) | 0.36 |
| Thread Length (Decimal) | 1.063 |
| Tap Chamfer Lght | 4 -5P |
| Tap Chamfer Form | B |
| Applicable Material | Steel Alloys & Long Chipping Materials |
| Length Type | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle | 0 degrees |
| Dimensional Standard | DIN/ANSI |
| Connection Dia. (Decimal) | 0.48 |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Country of Origin | Germany |
| Unit Of Measure | Fractional |
| Base Item Number | CU20K560 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Thread Tolerance Class | 3B |
| Thread Length | 1.063" |
| Length Group | DIN Length |
| Application | Spiral Point Taps |
| Cutting Edge Material | HSSE |
