Emuge
CU371Q00.5015

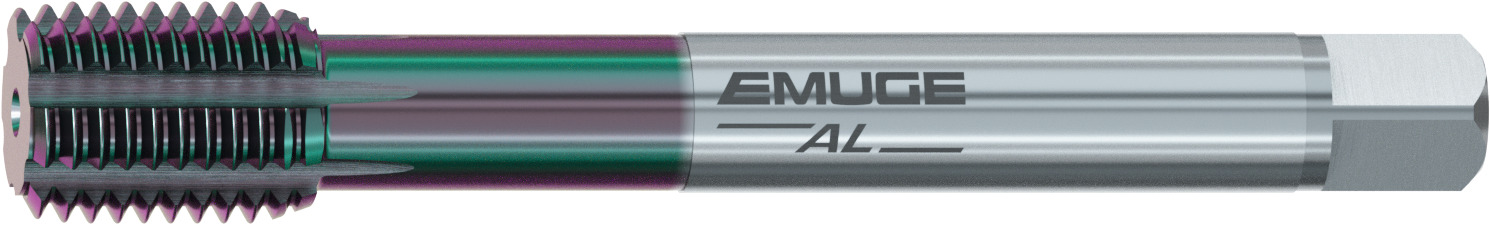

Emuge CU371Q00.5015
Specifications
| Thread Size | 5/8"-11 |
|---|---|
| Applicable Material | Aluminum Alloys |
| Application | Form Taps |
| Coating | GLT-104 |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE-PM |
| Flute Direction | Straight |
| Flute Helix Angle | 0° |
| Shank Tolerance | h9 |
| Short Description | 5/8-11 - Tap - InnoForm AL - PM - GLT-104 |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 -3 P |
| Thread Length | 0.909" |
| Thread Standard | UNC |
| Thread Tolerance Class | 2BX |
| Length Group | DIN Length |
| Country of Origin | Germany |
