Emuge
CU441Q00.5049
Emuge CU441Q00.5049
Specifications
| Thread Size | 5/8"-18 |
|---|---|
| Applicable Material | Aluminum Alloys |
| Application | Form Taps |
| Coating | GLT-104 |
| Coolant Fed | Axial |
| Coolant Supply Property | Internal |
| Cutting Edge Material | HSSE-PM |
| Flute Direction | Straight |
| Flute Helix Angle | 0° |
| Shank Tolerance | h9 |

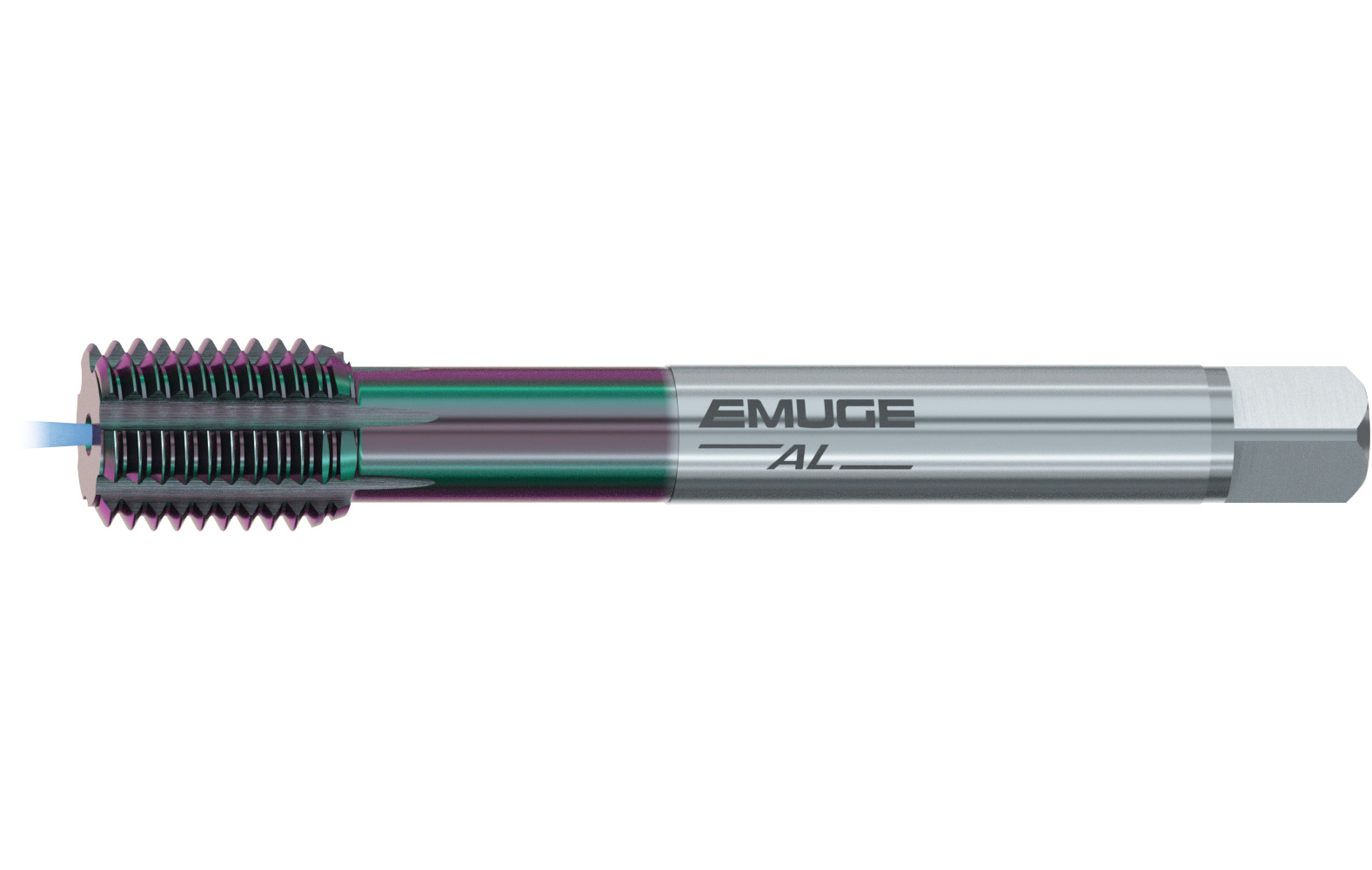

| Short Description | 5/8-18 - Tap - InnoForm AL/E - PM - GLT-104 - Coolant |
| Tap Chamfer Form | E |
| Tap Chamfer Lght | 1.5 -2 P |
| Thread Length | 0.556" |
| Thread Standard | UNF |
| Thread Tolerance Class | 2BX |
| Length Group | DIN Length |
| Country of Origin | Germany |
