Emuge
CU459611.5644

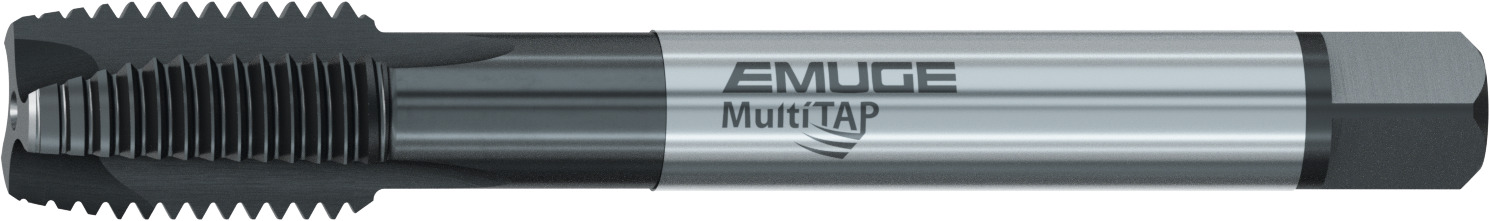

Emuge CU459611.5644
Specifications
| Thread Size | 9/16"-18 |
|---|---|
| Applicable Material | Titanium Alloys & High Tensile Materials |
| Application | STI Taps |
| Coating | TICN |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | RH |
| Flute Helix Angle | 15° |
| Shank Tolerance | h9 |
| Short Description | STI 9/16-18 UNF - Tap - Rekord D-TI - Titanium - TICN |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 -3 P |
| Thread Length | 0.866" |
| Thread Standard | STI-UNF |
| Thread Tolerance Class | 3BX |
| Length Group | DIN Length |
| Country of Origin | Germany |
