Emuge
CU503560.5047

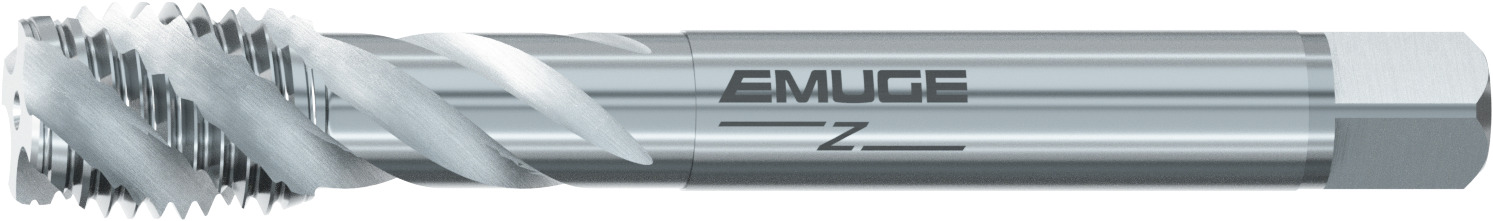

Emuge CU503560.5047
Specifications
| Number Of Flutes | 4.0 |
|---|---|
| Diameter (Inch) | 46024.0 |
| Type | Enorm Z |
| Overall Length (Inch) | 3.94 |
| Coating/Finish | Bright |
| Material | HSSE |
| Thread Size | 1/2-20 |
| Thread Standard | UNF |
| Short Description | 1/2-20 UNF- Tap - Enorm Z - LH |
| Thread Tolerance | 3B |
| Chamfer | Modified Bottoming |
| Threads per Inch | 20.0 |
| Tap Chamfer Lght | 2 -3 P |
| Tap Chamfer Form | C |
| Tap Square (Decimal) | 0.28 |
| Thread Length (Decimal) | 0.87 |
| Applicable Material | Long Chipping Material |
| Country of Origin | Germany |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Helix Angle | 45 degrees |
| Flute Direction | Left Hand |
| Shank Tolerance | h9 |
| Shank Diameter (Decimal) | 0.37 |
| Unit Of Measure | Imperial |
| Dimensional Standard | DIN/ANSI |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Flute Helix Angle | 45° |
| Thread Tolerance Class | 3B |
| Thread Length | 0.866" |
| Length Group | DIN Length |
| Application | Spiral Flute Taps |
| Cutting Edge Material | HSSE |
