Emuge
CU503G00.5016

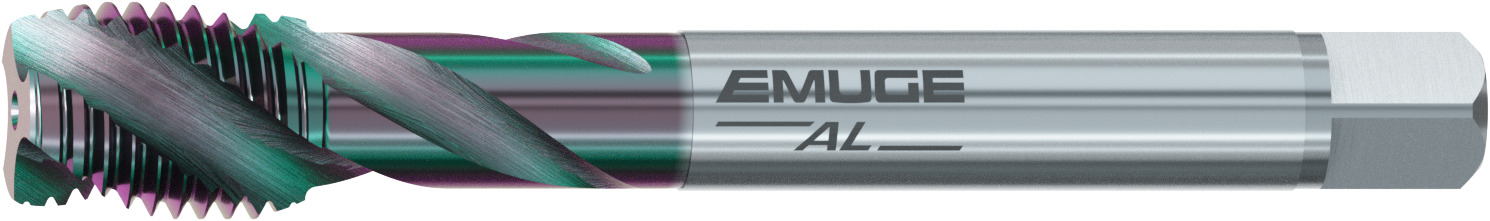

Emuge CU503G00.5016
Specifications
| Thread Size | 3/4"-10 |
|---|---|
| Applicable Material | Wrought Aluminum Alloys |
| Application | Spiral Flute Taps |
| Coating | GLT-104 |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | RH |
| Flute Helix Angle | 45° |
| Shank Tolerance | h9 |
| Short Description | 3/4-10 - Tap -Enorm AL -Bottoming- GLT-104 |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 -3 P |
| Thread Length | 0.769" |
| Thread Standard | UNC |
| Thread Tolerance Class | 2B |
| Length Group | DIN Length |
| Country of Origin | Germany |
