Emuge
CU50C460.5017

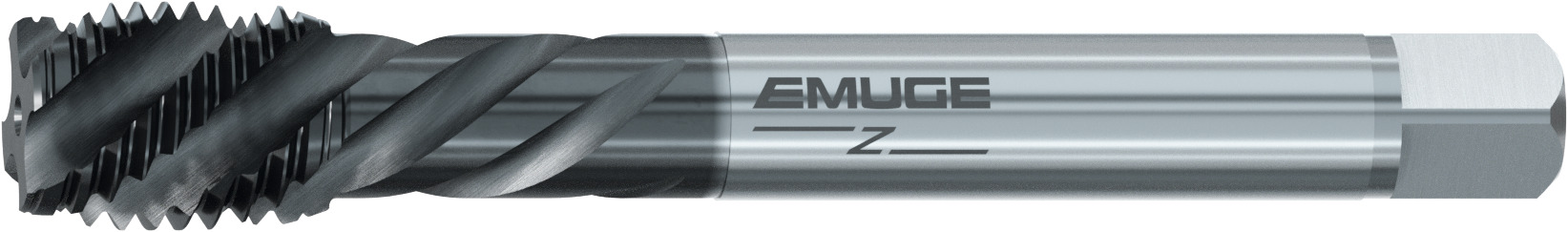

Emuge CU50C460.5017
Specifications
| Thread Size | 7/8"-9 |
|---|---|
| Applicable Material | Alloyed Steel & Long Chipping Materials |
| Application | Spiral Flute Taps |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | LH |
| Flute Helix Angle | 45° |
| Shank Tolerance | h9 |
| Short Description | 7/8-9 - Tap - Enorm Z - LH - GLT-1 |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 - 3 P |
| Thread Standard | UNC |
| Thread Tolerance Class | 3B |
| Length Group | DIN Length |
| Country of Origin | Germany |
