Emuge
CU50J300.5018

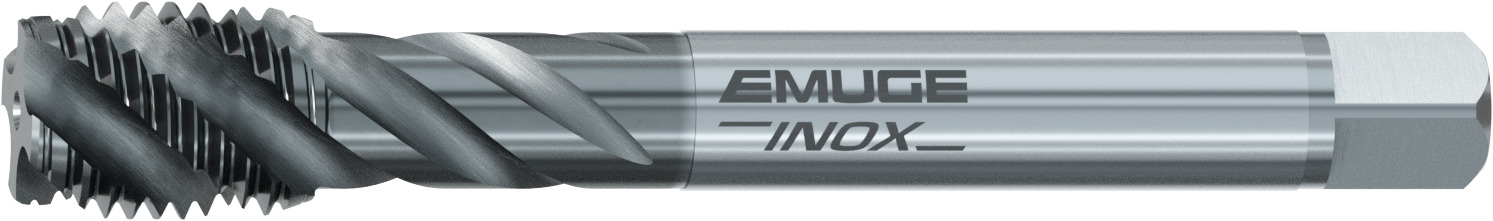

Emuge CU50J300.5018
Specifications
| Thread Size | 1"-8 |
|---|---|
| Thread Standard | UNC |
| Short Description | 1-8 -Tap -Enorm INOX - GLT-201 |
| Tap Chamfer Lght | 2 -3 P |
| Tap Chamfer Form | C |
| Class Of Fit | 3B |
| Applicable Material | Stainless Steel |
| Country of Origin | Germany |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Direction | RH |
| Shank Tolerance | h9 |
| Coating | GLT-201 |
| Flute Helix Angle | 35° |
| Length Group | DIN Length |
| Application | Spiral Flute Taps |
| Cutting Edge Material | HSSE |
| Material Grade | HSSE |
