Emuge
CU513G10.5621

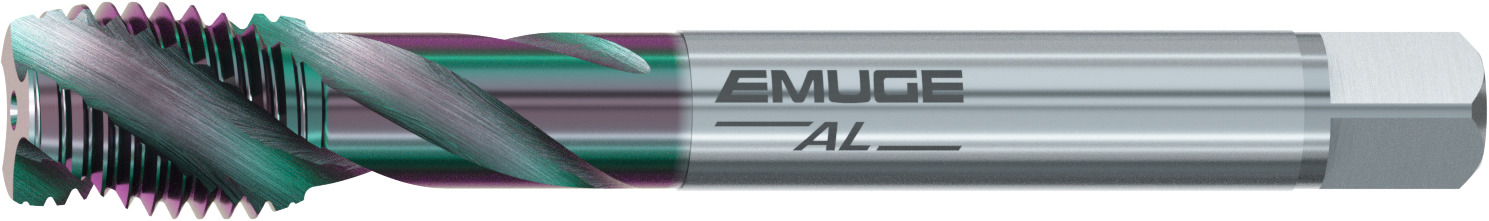

Emuge CU513G10.5621
Specifications
| Thread Size | 1/2"-13 |
|---|---|
| Applicable Material | Wrought Aluminum Alloys |
| Application | STI Taps |
| Coating | GLT-104 |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | RH |
| Flute Helix Angle | 45° |
| Shank Tolerance | h9 |
| Short Description | EaUS-En.2-AL/E-GLT-~EG 1/2-13 UNC-3B STI |
| Tap Chamfer Lght | 1.5 -2 P |
| Thread Standard | STI-UNC |
| Thread Tolerance Class | 3B |
| Length Group | DIN Length |
| Country of Origin | Germany |
