Emuge
CW208F01.5050

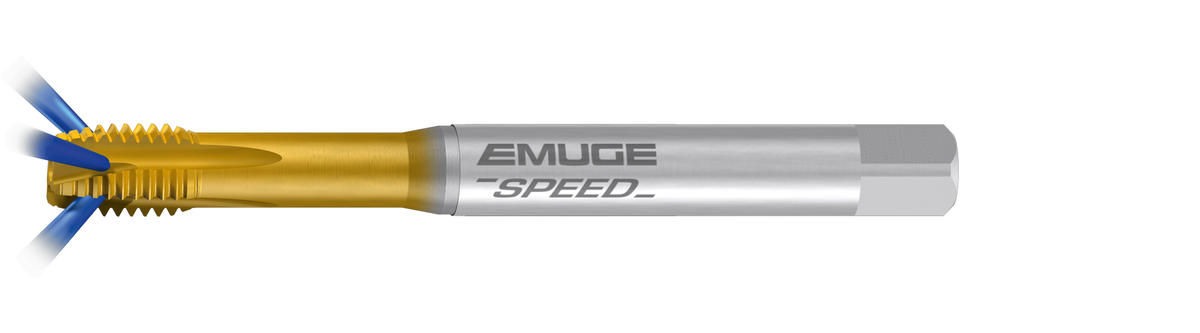

Emuge CW208F01.5050
Specifications
| Type | Rekord B-Steel |
|---|---|
| Coating/Finish | TIN-70 |
| Number Of Flutes | 4.0 |
| Diameter (Inch) | 46085.0 |
| Thread Size | 3/4-16 |
| Overall Length (Inch) | 4.331 |
| Material | HSSE-PM |
| Short Description | 3/4-16 - Tap - Rekord B Z/Speed -PM-TIN-70 -Coolant |
| Thread Standard | UNF |
| Thread Tolerance | 2BX |
| Chamfer | Plug |
| Tap Square (Decimal) | 0.442 |
| Thread Length (Decimal) | 0.625 |
| Tap Chamfer Lght | 4 -5P |
| Tap Chamfer Form | B |
| Applicable Material | Steel Alloys & Long Chipping Materials |
| Length Type | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Flute Helix Angle | 0 degrees |
| Dimensional Standard | DIN/ANSI |
| Connection Dia. (Decimal) | 0.59 |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Country of Origin | Germany |
| Unit Of Measure | Fractional |
| Base Item Number | CW208F01 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Thread Tolerance Class | 2BX |
| Thread Length | 0.625" |
| Length Group | DIN Length |
| Application | Spiral Point Taps |
| Cutting Edge Material | HSSE-PM |
