Emuge
GF162121.9516
Emuge GF162121.9516
Specifications

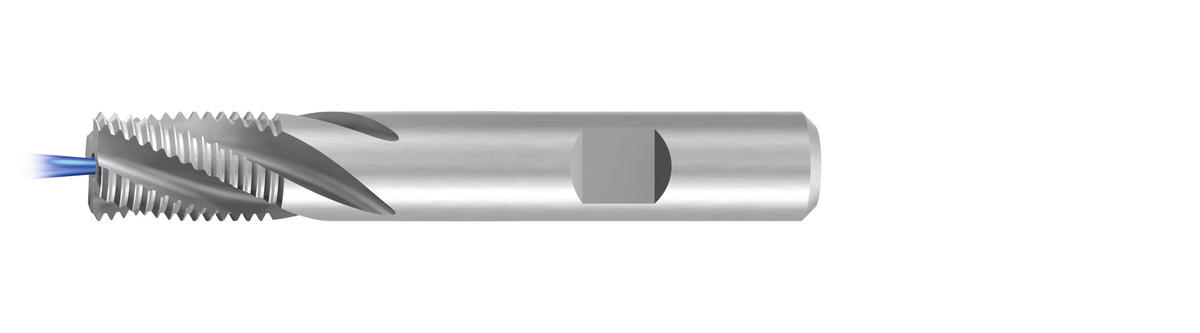

| Short Description | ≥18 x 2 - Thread Mill - VARIO Z- Coolant |
|---|---|
| Thread Standard | M / MF |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Thread Milling |
| Base Item Number | GF162121 |
| Coating | Bright |
| COO | Germany |
| Coolant Fed | Axial |
| Coolant Supply Property | Internal |
| Cutting Diameter (Metric) | 11.9 mm |
| Cutting Edge Material | Carbide |
| Flute Direction | RH |
| Flute Helix Angle | 30˚ |
| Product Type | Industrial Supplies |
| Shank Standard | DIN 6535 |
| Shank Tolerance | h6 |
| Thread Length | 1900-01-21 21:00:43 |
| Thread Pitch | 1900-01-03 0:00:00 |
| Thread Size | ≥M18x2 |
| Tool Type | VARIO Z |
| Flute Count | 4 |
