Emuge
GF283729.5041

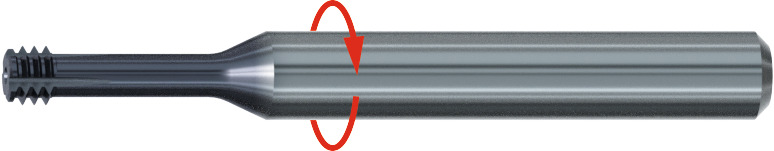

Emuge GF283729.5041
Specifications
| Short Description | 10-32 UNF Thread Mill - Threads-ALL / Max |
|---|---|
| Thread Standard | UNF |
| Applicable Material | High tensile strength & hardened Materials |
| Application | Thread Milling |
| Coating | TIALN-T46 |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | Carbide |
| Flute Direction | LH |
| Flute Helix Angle | 10˚ |
| Shank Standard | DIN 6535 |
| Shank Tolerance | h6 |
| Thread Size | #10-32 |
| Length Group | 2xD |
| Country of Origin | Germany |
