Emuge
TA201544.0476

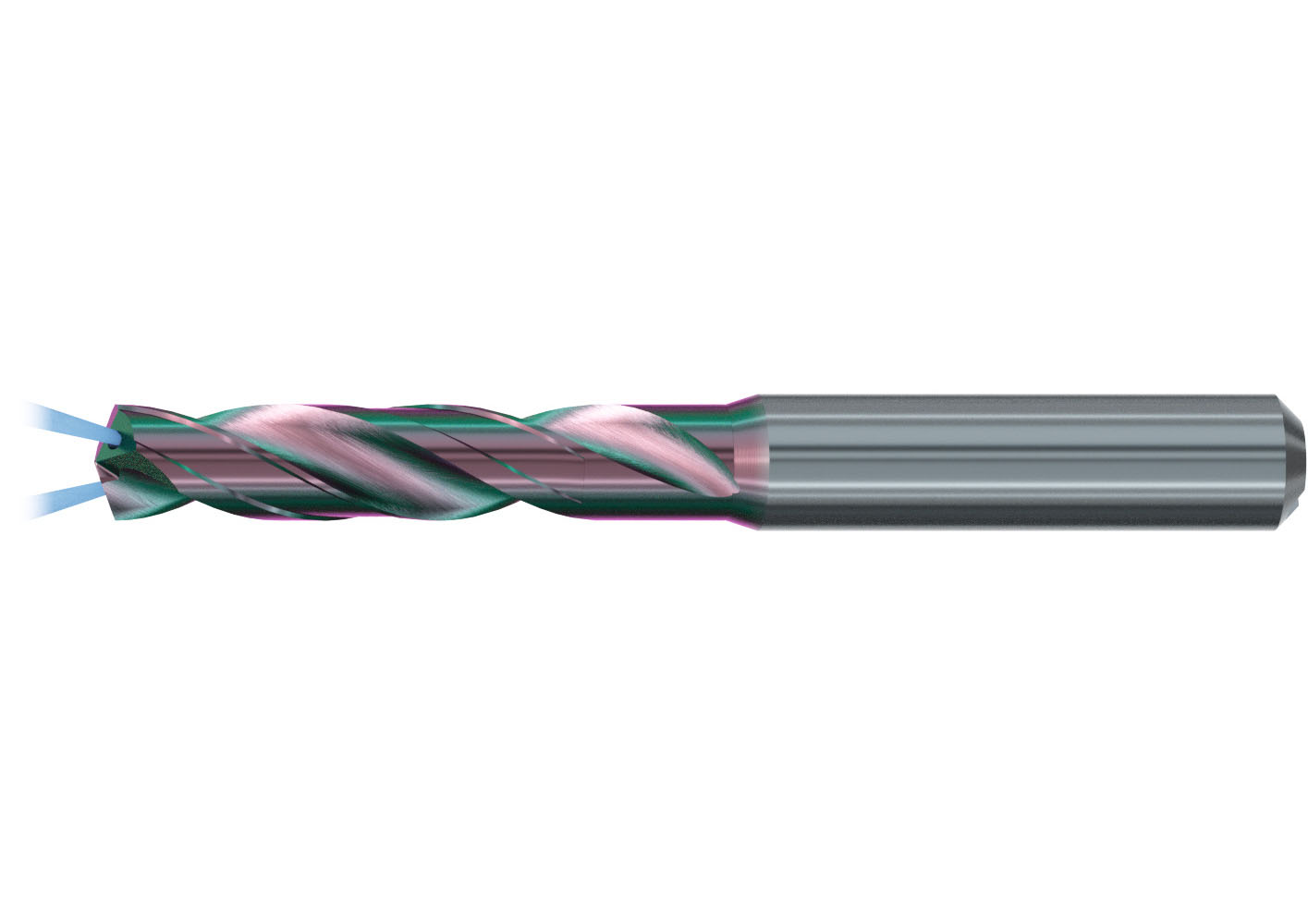

Emuge TA201544.0476
Specifications
| Cutting Diameter (Inch) | 3/16" |
|---|---|
| Coating | ALTIN-112 |
| Short Description | 3/16 STEEL Drill - 3xD - Coolant Fed |
| Flute Helix Angle | 30˚ |
| Shank Tolerance | h6 |
| Length Group | 3xD |
| Flute Direction | RH |
| Coolant Fed | Yes |
| Coolant Supply Property | Internal |
| Point Angle | 140˚ |
| Application | High Penetration Rate Drill |
| Shank Standard | DIN 6535 |
| Cutting Edge Material | Carbide |
| Country of Origin | Germany |
| Applicable Material | Steel, Alloyed Steel, Tool Steel, Copper, Aluminum |
