Fullerton Tool Company
27631
Fullerton 27631
Specifications
| Overall Length (Inch) | 3-1/2 |
|---|---|
| Length Of Cut (Inch) | 1-5/8 |
| Double Ended | No |
| Overall Length (Metric) | 88.9 |
| Cutting Direction | Right |
| Length Of Cut (Metric) | 41.28 |
| Number Of Flutes | 3 |
| Unit Of Measure | Imperial |
| Coolant | No |

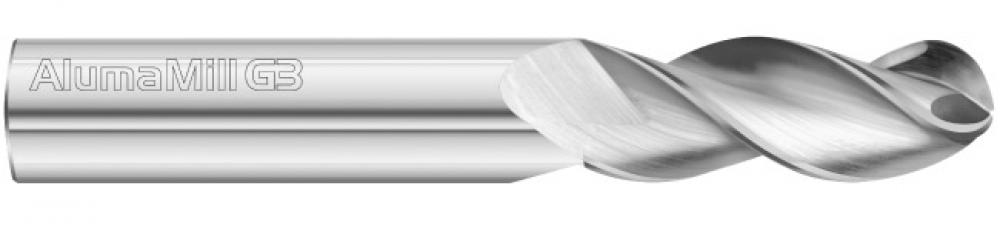

| Short Description | The AlumaMill G3 excels in roughing, finishing, plunging, and ramping aluminum and brass & copper. |
| Shank Diameter | 0.63 Inch |
| Cutting Diameter (Fractional) | 5/8 |
| Cutting Diameter (Metric) | 15.88 |
| Shank Diameter (Fractional) | 5/8 |
| Shank Diameter (Metric) | 15.88 |
| Drill Ratio | SD |
| Flute Spiral | Right Hand |
| Helix Angle | 37.50 degrees |
| Cutting Diameter | 0.63 Inch |
| Base Item Number | 3833 |
| Length | Standard |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
