Fullerton Tool Company
30346
Fullerton 30346
Specifications
| Coating/Finish | TiCN |
|---|---|
| Overall Length (Inch) | 2 |
| Length Of Cut (Inch) | 9/16 |
| Double Ended | No |
| Overall Length (Metric) | 50.8 |
| Cutting Direction | Right |
| Length Of Cut (Metric) | 14.29 |
| Number Of Flutes | 4 |
| Unit Of Measure | Imperial |
| Coolant | No |

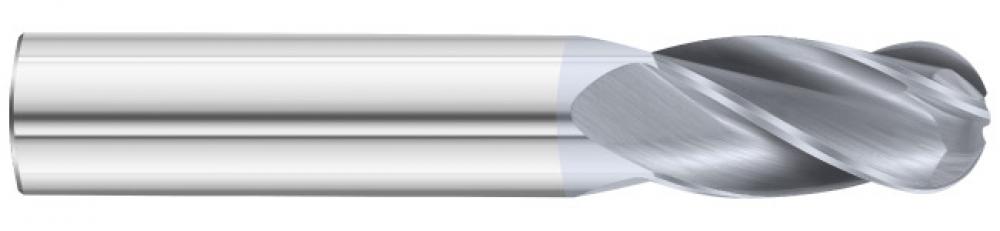

| Short Description | The General Purpose End Mill was designed for use in titanium, super alloys, hardened steels, stainless steels, cast iron, brass & copper, and low si aluminum. |
| Shank Diameter | 0.19 Inch |
| Cutting Diameter (Fractional) | 9/64 |
| Cutting Diameter (Metric) | 3.57 |
| Shank Diameter (Fractional) | 3/16 |
| Shank Diameter (Metric) | 4.76 |
| Drill Ratio | SD |
| Flute Spiral | Right Hand |
| Helix Angle | 30 degrees |
| Cutting Diameter | 0.14 Inch |
| Base Item Number | 3200 |
| Color | Blue-Gray |
| Length | Standard |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Coating Color | Blue-Gray |
