Fullerton Tool Company
30791
Fullerton 30791
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Overall Length (Inch) | 4 |
| Length Of Cut (Inch) | 1-1/2 |
| Double Ended | No |
| Overall Length (Metric) | 101.6 |
| Cutting Direction | Right |
| Length Of Cut (Metric) | 38.1 |
| Number Of Flutes | 2 |
| Unit Of Measure | Imperial |
| Coolant | No |

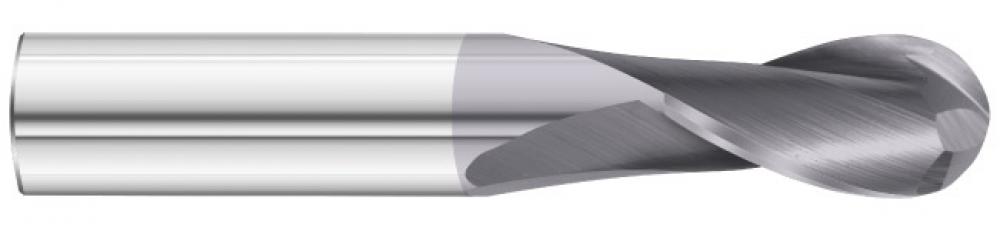

| Short Description | The General Purpose End Mill was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum. |
| Shank Diameter | 1 Inch |
| Cutting Diameter (Fractional) | 1 |
| Cutting Diameter (Metric) | 25.4 |
| Shank Diameter (Metric) | 25.4 |
| Drill Ratio | SD |
| Flute Spiral | Right Hand |
| Helix Angle | 30 degrees |
| Cutting Diameter | 1 Inch |
| Base Item Number | 3215 |
| Color | Violet-Gray |
| Length | Standard |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Coating Color | Violet-Gray |
