Fullerton Tool Company
31592

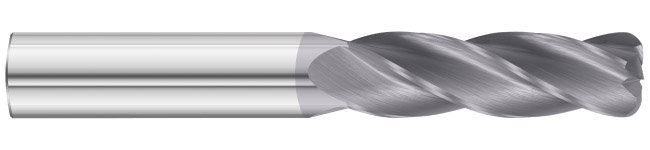

Fullerton 31592
Specifications
| Length Of Cut (Inch) | 2 |
|---|---|
| Helix Angle | 30 degrees |
| Cutting Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 4 |
| Shank Diameter (Metric) | 12.7 |
| Cutting Diameter (Metric) | 12.7 |
| Length Of Cut (Metric) | 50.8 |
| Overall Length (Metric) | 101.6 |
| Coating/Finish | TiAlN |
| Number Of Flutes | 4 |
| Unit Of Measure | Imperial |
| Cutting Direction | Right |
| Coolant | No |
| Short Description | The General Purpose End Mill was designed for use in titanium, super alloys, hardened steels, stainless steels, cast iron, brass & copper, and low si aluminum. |
| Shank Diameter (Decimal) | 1/2 |
| Color | Violet-Gray |
| Drill Ratio | XL |
| Flute Spiral | RH |
| Radius (Decimal) | 0.03 |
| Radius (Metric) | 0.76 |
| Double Ended | No |
| Base Item Number | 3200 |
| Length | Extra-Long |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Coating Color | Violet-Gray |
