Fullerton Tool Company
32175
Fullerton 32175
Specifications
| Length Of Cut (Metric) | 4.76 |
|---|---|
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Metric) | 38.1 |
| Length Of Cut (Inch) | 3/16 |
| Number Of Flutes | 2 |
| Double Ended | No |
| Cutting Direction | Right |
| Unit Of Measure | Imperial |
| Helix Angle | 30 degrees |
| Coolant | No |

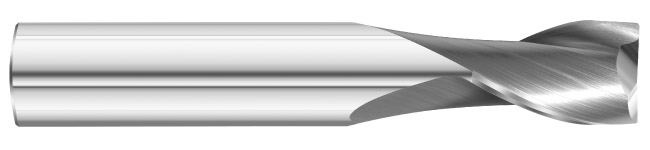

| Short Description | The General Purpose End Mill was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum. |
| Cutting Diameter | 0.09 Inch |
| Shank Diameter | 0.13 Inch |
| Cutting Diameter (Fractional) | 3/32 |
| Cutting Diameter (Metric) | 2.38 |
| Shank Diameter (Fractional) | 1/8 |
| Shank Diameter (Metric) | 3.18 |
| Drill Ratio | STB |
| Flute Spiral | Right Hand |
| Base Item Number | 3215 |
| Length | Stub |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
