Fullerton Tool Company
36163
Fullerton 36163
Specifications
| Length Of Cut (Inch) | 0.16 |
|---|---|
| Cutting Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Shank Diameter (Metric) | 4.76 |
| Cutting Diameter (Metric) | 4.76 |
| Length Of Cut (Metric) | 4.11 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Metric) | 50.8 |
| Number Of Flutes | 4 |
| Unit Of Measure | Imperial |
| Cutting Direction | Right |
| Coolant | No |

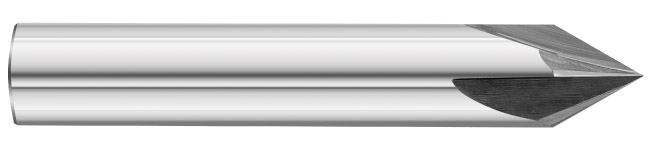

| Short Description | The Chamfer Mill was designed for deburring and chamfering in small grooves and holes. |
| Drill Ratio | SD |
| Flute Spiral | ST |
| Double Ended | No |
| Chamfer Angle | 60 degrees |
| Non Cutting Tip (Decimal) | 0.02 |
| Non Cutting Tip (Metric) | 0.51 |
| Base Item Number | 3730 |
| Length | Standard |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
