Fullerton Tool Company
92008
Fullerton 92008
Specifications
| Length Of Cut (Metric) | 16 |
|---|---|
| Overall Length (Inch) | 2.52 |
| Overall Length (Metric) | 64 |
| Length Of Cut (Inch) | 0.63 |
| Number Of Flutes | 4 |
| Double Ended | No |
| Cutting Direction | Right |
| Unit Of Measure | Metric |
| Helix Angle | 30 degrees |
| Coolant | No |

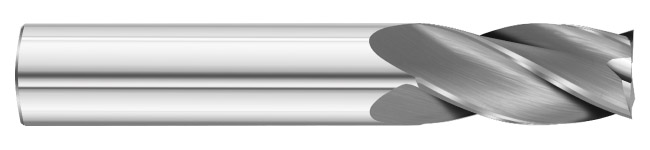

| Short Description | The General Purpose End Mill was designed for use in titanium, super alloys, hardened steels, stainless steels, cast iron, brass & copper, and low si aluminum. |
| Cutting Diameter | 5 mm |
| Shank Diameter | 5 mm |
| Cutting Diameter (Decimal) | 0.2 |
| Shank Diameter (Decimal) | 0.2 |
| Drill Ratio | SD |
| Flute Spiral | Right Hand |
| Base Item Number | 3200 |
| Length | Standard |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
