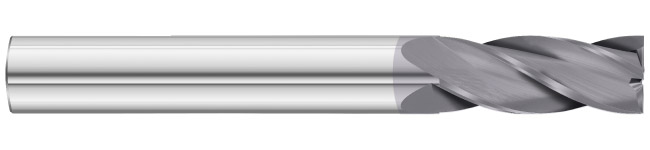

Fullerton Tool Company
92228
Fullerton 92228
Specifications
| Length Of Cut (Metric) | 25 |
|---|---|
| Overall Length (Inch) | 2.99 |
| Overall Length (Metric) | 76 |
| Length Of Cut (Inch) | 0.98 |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Double Ended | No |
| Cutting Direction | Right |
| Unit Of Measure | Metric |
| Helix Angle | 30 degrees |
| Coolant | No |
| Short Description | The General Purpose End Mill was designed for use in titanium, super alloys, hardened steels, stainless steels, cast iron, brass & copper, and low si aluminum. |
| Cutting Diameter | 3 mm |
| Shank Diameter | 3 mm |
| Cutting Diameter (Decimal) | 0.12 |
| Shank Diameter (Decimal) | 0.12 |
| Drill Ratio | XL |
| Color | Violet-Gray |
| Flute Spiral | Right Hand |
| Base Item Number | 3200 |
| Length | Extra-Long |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Coating Color | Violet-Gray |
