Fullerton Tool Company
92354
Fullerton 92354
Specifications
| Length Of Cut (Metric) | 12 |
|---|---|
| Overall Length (Inch) | 1.5 |
| Overall Length (Metric) | 38 |
| Length Of Cut (Inch) | 0.47 |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Double Ended | No |
| Cutting Direction | Right |
| Unit Of Measure | Metric |
| Helix Angle | 30 degrees |
| Coolant | No |

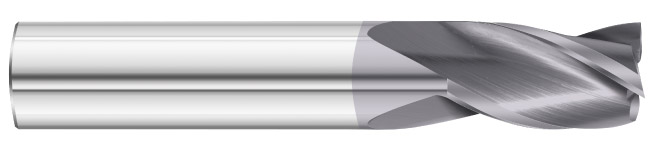

| Short Description | The General Purpose End Mill was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, high si aluminum, and low si aluminum. |
| Cutting Diameter | 3 mm |
| Shank Diameter | 3 mm |
| Cutting Diameter (Decimal) | 0.12 |
| Shank Diameter (Decimal) | 0.12 |
| Drill Ratio | SD |
| Color | Violet-Gray |
| Flute Spiral | Right Hand |
| Base Item Number | 3300 |
| Length | Standard |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Coating Color | Violet-Gray |
