Greenfield
11121

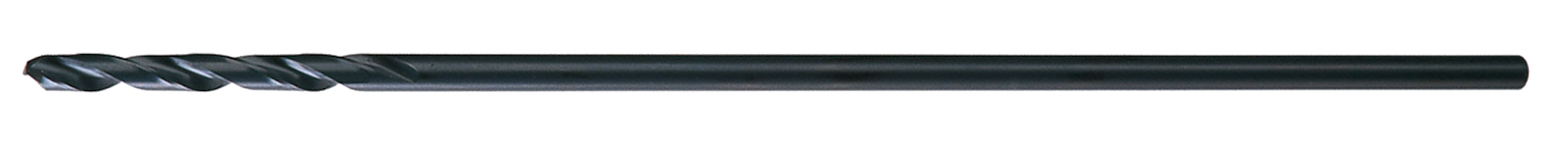

Chicago-Latrobe NAS-Type Aircraft Extension Drill
Specifications
| Overall Length (Metric) | 304.8 |
|---|---|
| Shank Type | Straight |
| Flute Type | Spiral |
| Diameter (Inch) | 29/64 |
| Overall Length (Inch) | 12 |
| Material | HSS |
| Diameter (Metric) | 11.51 |
| Shank Size (Inch) | 0.45 |
| Number Of Flutes | 2 |
| Flute Length (Inch) | 4.1875 |
| Shank Size (Metric) | 11.51 |
| Flute Length (Metric) | 106.36 |
| Type | Heavy Duty |
| Short Description | NAS-Type Aircraft Extension Drill |
| Diameter | 0.453125 |
| Diameter (Decimal Inch) | 0.453125 |
| Unit Of Measure | Fractional |
| Point Type | Split |
| Cutting Direction | Right |
| Coating/Finish | Steam Oxide |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Point Angle | 135 degrees |
| Drill Construction | Heavy-Duty |
| Shank Length (Decimal) | 7.81 |
| Shank Length (Metric) | 198.44 |
| Drill Style | Aircraft Extension Drill |
| Measurement System | Imperial |
| ECCN | EAR99 |
| Tool Type | Drill |
| Set | No |
| Pack Qty | 6 |
| UNSPSC | 20111614 |
| Package Type | Tube |
| Base Item Number | 912 |
| Brand Name | Chicago-Latrobe |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Point Style | Split |
| Product Type | Industrial Supplies |
| Shank Length | 7.8125 |
| Shank Length (mm) | 198.44 |
| Unit of Measure | Fractional |
| Shank Length (Inch) | 7.8125 |
| Flute Length | 4.1875 |
| Shank Size | 0.4531 |
| Surface Condition | Steam Oxide |
| Overall Length (Decimal Inch) | 12 |
| Shank Configuration | Straight |
| Drill Size System | Fractional |
| Tool Size | 29/64" |
