Greenfield
330208

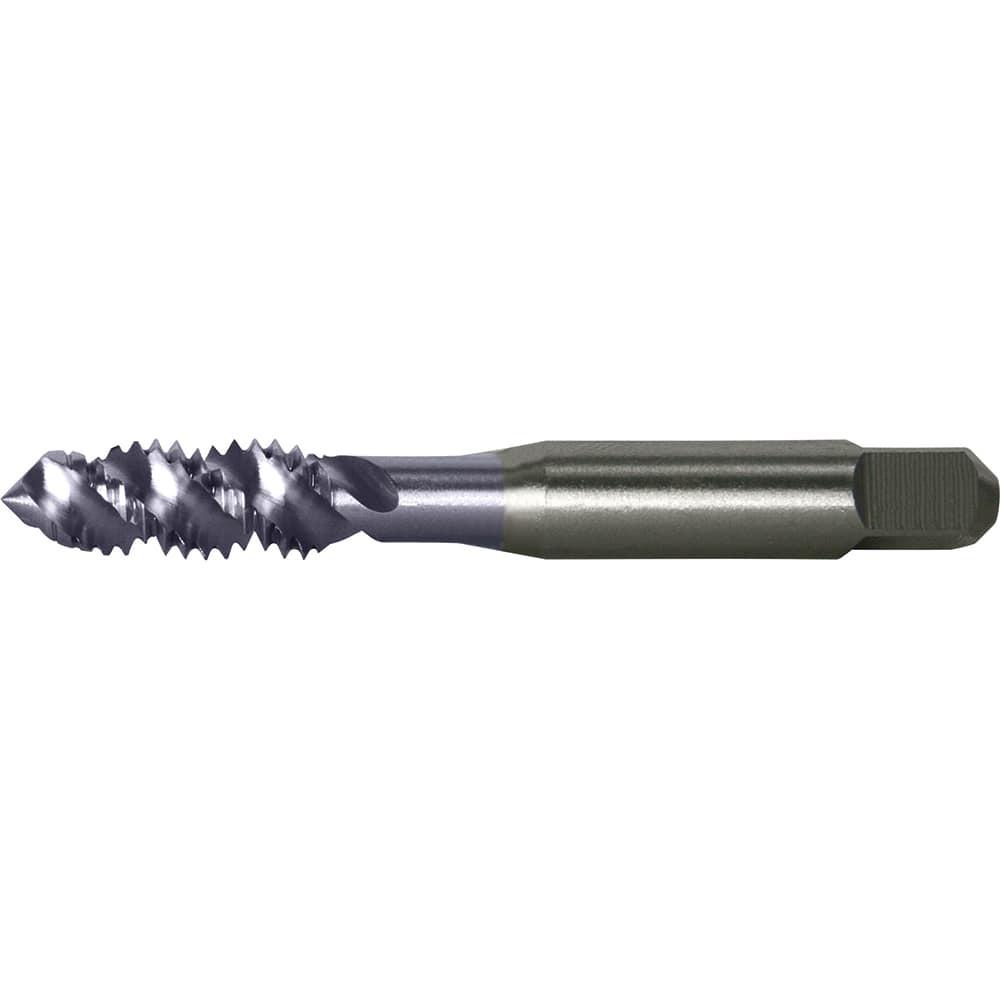

High-Spiral General Purpose Spiral Flute Tap
Specifications
| Diameter (Metric) | 5 |
|---|---|
| Overall Length (Metric) | 60.32 |
| Thread Tolerance | 6H |
| Thread Pitch | 0.8 |
| Diameter | 0.1969 |
| Flute Type | Spiral |
| Shank Size (Metric) | 4.93 |
| Hand Of Spiral | Right |
| Operation Type | Bottoming Hole |
| Tap Blank Construction | USCTI Table 302A |
| Tap Construction | High Helix |
| Tap Ground Threads | Yes |
| Tap Spiral Point | No |
| Thread Size Decimal Equiv | 0.1969 |
| Tap Style | Spiral Flute Tap |
| Material Application | N: Non-ferrous Metal;P: Steel |
| Tap Interrupted Thread | No |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread Creation | Thread Cutting |
| ECCN | EAR99 |
| Shank Configuration | Straight w/ Square |
| Pack Qty | 1 |
| Set | No |
| UNSPSC | 27112806 |
| Shank Size | 0.194 |
| Surface Condition | TiCN |
| Overall Length (Decimal Inch) | 2.375 |
| Overall Length (mm) | 6.032 cm |
| Tap Limit | D4 |
| Shank Square Length | 0.25 |
| Thread Length | 0.875 |
| Thread Form | Metric |
| Measurement System | Metric |
| Diameter (Decimal Inch) | 0.1969 |
| Application | General Purpose |
| Depth of Cut | 2 |
| Tool Size | M5x0.8 |
