Greenfield
385364

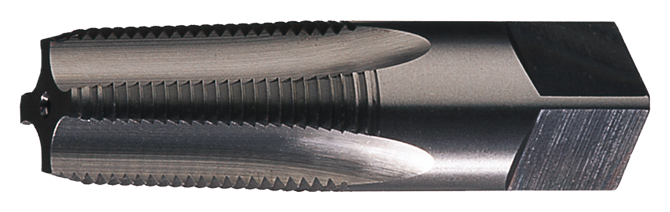

Pipe Tap
Specifications
| Overall Length (Metric) | 53.97 |
|---|---|
| Thread Size | 0.125 |
| Thread Form | NPT |
| Tap Style | Tapered Pipe Tap |
| Short Description | Pipe Tap |
| Shank Size | 0.4375 |
| Surface Condition | Bright |
| Tap Ground Threads | Yes |
| Tap Type | Pipe Tap |
| Tap Interrupted Thread | No |
| Thread Pitch | 27 |
| UNSPSC | 27112806 |
| Overall Length (mm) | 5.397 cm |
| Thread Creation | Thread Cutting |
| Tap Blank Construction | USCTI Table 311 |
| Shank Square Length | 0.375 |
| Diameter (Metric) | 3.18 |
| Thread Length | 0.75 |
| Flute Type | Straight |
| Shank Configuration | Straight w/ Square |
| Tap Truncated Threads | No |
| Tap Spiral Point | No |
| Pack Qty | 1 |
| Measurement System | Imperial |
| Operation Type | Thru Hole |
| Diameter (Decimal Inch) | 0.125 |
| Shank Size (Metric) | 11.11 |
| Diameter | 0.125 |
| Application | General Purpose |
| Set | No |
| Thread Size Decimal Equiv | 0.125 |
| Tap Construction | Medium Hook Taper |
| Material Application | K: Cast Iron;M: Stainless Steel;N: Non-ferrous Metal;P: Steel |
| Tool Size | 1/8-27 NPT |
| ECCN | EAR99 |
