Greenfield
50737

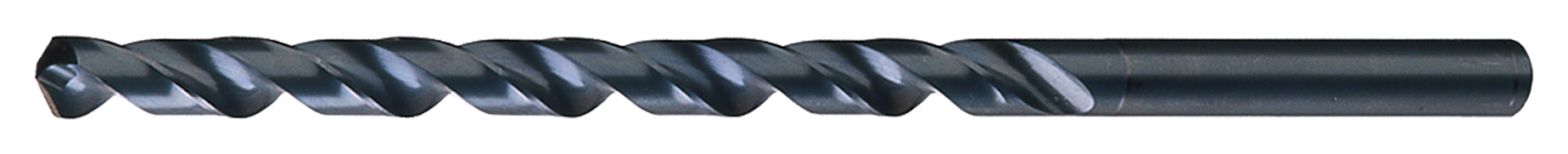

Chicago-Latrobe Heavy-Duty Extra Long Drill
Specifications
| Shank Type | Straight |
|---|---|
| Flute Length (Inch) | 9 |
| Overall Length (Metric) | 304.8 |
| Shank Size (Metric) | 6.75 |
| Type | General Purpose |
| Material | HSS |
| Diameter (Metric) | 6.75 |
| Cutting Direction | Right |
| Number Of Flutes | 2 |
| Coating/Finish | Steam Oxide |
| Flute Length (Metric) | 228.6 |
| Diameter (Inch) | 17/64 |
| Shank Size (Inch) | 0.2656 |
| Point Type | Notched |
| Short Description | Heavy-Duty Extra Long Drill |
| Diameter (Decimal) | 0.265625 |
| Diameter | 0.265625 |
| Unit Of Measure | Fractional |
| Flute Type | Spiral |
| Point Angle | 118 degrees |
| Hand Of Spiral | Right |
| Shank Length (Decimal) | 3 |
| Shank Length (mm) | 76.2 |
| Brand Name | Chicago-Latrobe |
| Package Type | Tube |
| Drill Construction | General Purpose |
| Point Style | Notched |
| Measurement System | Imperial |
| Drill Size System | Fractional |
| Shank Configuration | Straight |
| Drill Style | Extra Length Drill |
| ECCN | EAR99 |
| Tool Type | Drill |
| Set | No |
| Pack Qty | 1 |
| UNSPSC | 20111614 |
| Flute Length | 9 |
| Shank Size | 0.2656 |
| Shank Length (Metric) | 76.2 |
| Base Item Number | 120X |
| Drill Point Angle | 118 |
| Hand Of Spiral Cut | RHS / RHC |
| Product Type | Industrial Supplies |
| Shank Length | 3 |
| Unit of Measure | Fractional |
| Shank Length (Inch) | 3 |
| Surface Condition | Steam Oxide |
| Double Ended | No |
| Diameter (Decimal Inch) | 0.2656 |
| Tool Size | 17/64" |
