Greenfield
53115

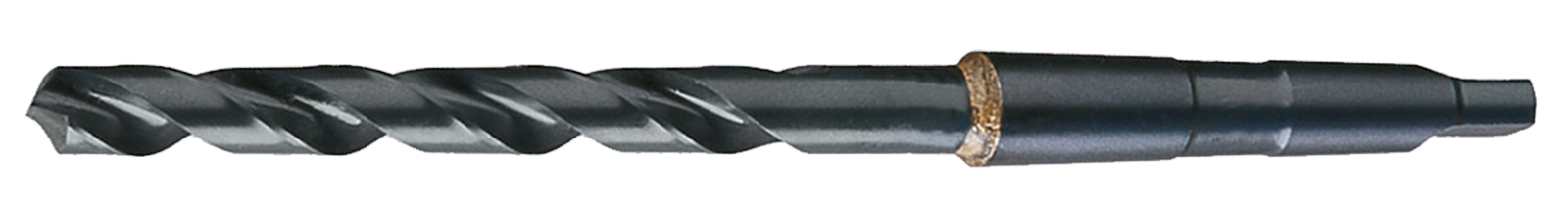

Chicago-Latrobe General Purpose Taper Shank Drill
Specifications
| Flute Length (Metric) | 73.02 |
|---|---|
| Diameter (Inch) | 15/64 |
| Material | HSS |
| Flute Length (Inch) | 2.88 |
| Coating/Finish | Steam Oxide |
| Number Of Flutes | 2 |
| Type | General Purpose |
| Overall Length (Metric) | 155.57 |
| Flute Type | Spiral |
| Diameter (Metric) | 5.95 |
| Short Description | General Purpose Taper Shank Drill |
| Diameter | 15/64 Inch |
| Unit Of Measure | Fractional |
| Shank Type | #1 Morse Taper |
| Point Type | Radial |
| Cutting Direction | Right |
| Point Angle | 118 degrees |
| Hand Of Spiral | Right |
| Shank Length (Inch) | 3.25 |
| Shank Length (Metric) | 82.55 |
| Brand Name | Chicago-Latrobe |
| Package Type | Tube |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Construction | General Purpose |
| Tool Type | Drill |
| Measurement System | Imperial |
| Drill Style | Taper Shank Drill |
| Tool Size | 15/64" |
| Point Style | Radial |
| Drill Point Angle | 118 |
| Pack Qty | 1 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Flute Length | 2.875 |
| Base Item Number | 110 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Surface Condition | Steam Oxide |
| Double Ended | No |
| Shank Length | 3.25 |
| Shank Configuration | #1 Morse Taper |
| Diameter (Decimal Inch) | 0.2344 |
| Set | No |
| Drill Size System | Fractional |
