Greenfield
53475

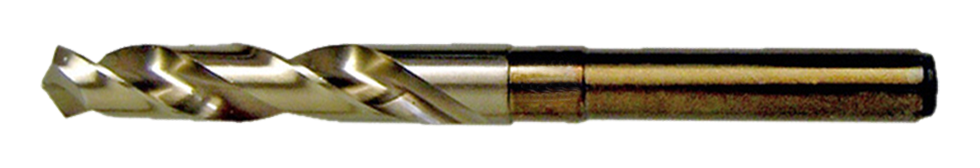

Chicago-Latrobe 1/2" Reduced Shank Silver & Deming Drill
Specifications
| Material | HSS-CO 8% (M42) |
|---|---|
| Type | General Purpose |
| Point Angle | 118 degrees |
| Coating/Finish | Straw |
| Flute Length (Inch) | 3.13 |
| Flute Length (Metric) | 79.38 |
| Number Of Flutes | 2 |
| Shank Size (Inch) | 0.5 |
| Cutting Direction | Right |
| Shank Size (Metric) | 12.7 |
| Diameter (Inch) | 1-3/16 |
| Diameter (Metric) | 30.16 |
| Short Description | 1/2" Reduced Shank Silver & Deming Drill |
| Diameter | 1.19 |
| Diameter (Decimal) | 1.19 |
| Unit Of Measure | Fractional |
| Flute Length | 3.13 Inch |
| Flute Type | Spiral |
| Overall Length (Metric) | 152.4 |
| Shank Size | 0.5 Inch |
| Shank Type | Reduced |
| Point Type | Split |
| Drill Style | Silver & Deming |
| Hand Of Spiral | Right |
| Shank Length | 2.25 |
| Shank Length (Decimal) | 2.25 |
| Shank Length (Metric) | 57.15 |
| Shank Neck Diameter (Decimal) | 1.14 |
| Shank Neck Length (Decimal) | 0.5 |
| Brand Name | Chicago-Latrobe |
| Package Type | Tube |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Construction | General Purpose |
| Tool Type | Drill |
| Measurement System | Imperial |
| Shank Length (mm) | 57.15 |
| Drill Point Angle | 118 |
| ECCN | EAR99 |
| Pack Qty | 1 |
| Set | No |
| UNSPSC | 20111614 |
| Base Item Number | 190C |
| Overall Length (mm) | 15.24 cm |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Length (Inch) | 2.25 |
| Surface Condition | Straw |
| Shank Neck Length | 0.5 |
| Shank Configuration | Reduced |
| Point Style | Split |
| Diameter (Decimal Inch) | 1.1875 |
| Drill Size System | Fractional |
| Tool Size | 1-3/16" |
| Shank Neck Diameter | 1.1435 |
