Greenfield
55097

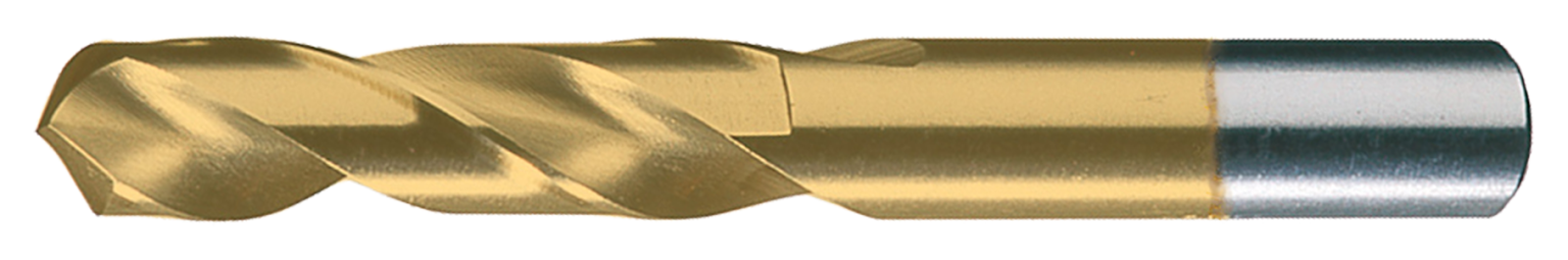

Chicago-Latrobe General Purpose Screw Machine Drill
Specifications
| Flute Length (Inch) | 0.69 |
|---|---|
| Flute Length (Metric) | 17.46 |
| Diameter (Metric) | 1.98 |
| Type | General Purpose |
| Overall Length (Metric) | 42.86 |
| Shank Size (Inch) | 0.08 |
| Material | HSS |
| Coating/Finish | TiN |
| Diameter (Inch) | 5/64 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 1.98 |
| Unit Of Measure | Fractional |
| Flute Type | Spiral |
| Shank Length (Metric) | 25.4 |
| Short Description | General Purpose Screw Machine Drill |
| Cutting Direction | Right |
| Point Angle | 118 degrees |
| Shank Length (Decimal) | 1 |
| Diameter | 5/64 Inch |
| Flute Length | 0.69 Inch |
| Shank Size | 0.08 Inch |
| Shank Type | Straight |
| Point Type | Radial |
| Drill Style | Screw Machine |
| Drill Construction | General Purpose |
| Hand Of Spiral | Right |
| Shank Length | 1 |
| Brand Name | Chicago-Latrobe |
| Hand Of Spiral Cut | RHS / RHC |
| Package Type | Envelope |
| Measurement System | Imperial |
| Drill Size System | Fractional |
| Tool Type | Drill |
| Shank Length (mm) | 25.4 |
| Point Style | Radial |
| Drill Point Angle | 118 |
| Shank Configuration | Straight |
| Double Ended | No |
| Pack Qty | 12 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Base Item Number | 157-TN |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Length (Inch) | 1 |
| Surface Condition | TiN |
| Diameter (Decimal Inch) | 0.0781 |
| Set | No |
| Tool Size | 5/64" |
