Greenfield
B05142

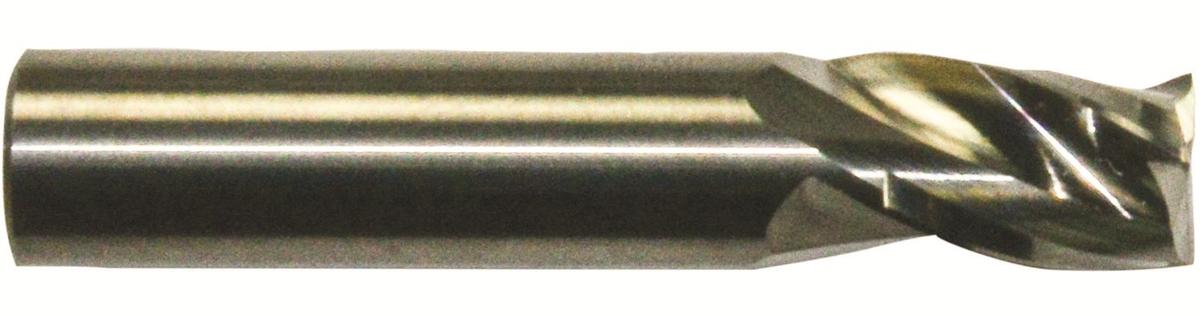

Cleveland 3-Flute Square End High-Performance End Mill for Steel and Stainless Steel
Specifications
| Shank Size (Inch) | 0.19 |
|---|---|
| Type | High Performance |
| Shank Type | Straight |
| Overall Length (Inch) | 2 |
| Overall Length (Metric) | 50.8 |
| Length Of Cut (Inch) | 0.56 |
| Flute Type | Spiral |
| Number Of Flutes | 3 |
| Material | Carbide |
| Coating/Finish | Bright |
| Double Ended | No |
| Diameter (Metric) | 3.97 |
| Shank Size (Metric) | 4.76 |
| Cutting Direction | Right |
| Diameter (Inch) | 5/32 |
| Unit Of Measure | Imperial |
| Short Description | 3-Flute Square End High-Performance End Mill for Steel and Stainless Steel |
| Shank Size | 0.19 Inch |
| Overall Length | 2 Inch |
| Hand Of Spiral | Right |
| Corner Radius (Decimal) | 0.01 |
| Mill Construction | HP for Steel & Stainless Steel |
| Center Cutting | Yes |
| LOC Designation | Regular |
| Brand Name | Cleveland |
| Mill End Style | Corner Radius |
| Tool Size | 5/32" x 3/16" x 9/16" x 2" |
| Application | High Performance |
| ECCN | EAR99 |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Type | End Mill |
| Pack Qty | 1 |
| Package Type | Tube |
| Set | No |
| UNSPSC | 27112803 |
| Diameter | 0.1562 |
| Base Item Number | HPEM-3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 2 |
| Shank Configuration | Straight |
| Diameter (Decimal Inch) | 0.1562 |
