Greenfield
B05327

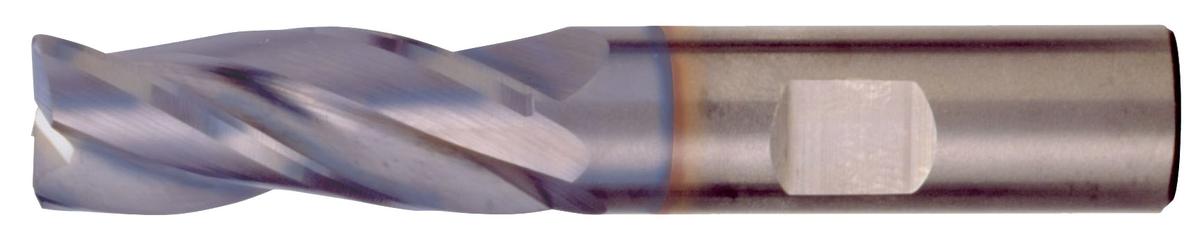

Cleveland 3-Flute Square End High-Performance End Mill for Steel and Stainless Steel
Specifications
| Shank Size (Inch) | 0.5 |
|---|---|
| Type | High Performance |
| Shank Type | Straight |
| Overall Length (Inch) | 2.5 |
| Length Of Cut (Inch) | 0.63 |
| Flute Type | Spiral |
| Number Of Flutes | 3 |
| Material | Carbide |
| Coating/Finish | TiAlN |
| Double Ended | No |
| Diameter (Metric) | 11.91 |
| Cutting Direction | Right |
| Diameter (Inch) | 15/32 |
| Unit Of Measure | Imperial |
| Short Description | 3-Flute Square End High-Performance End Mill for Steel and Stainless Steel |
| Shank Size | 0.5 Inch |
| Overall Length | 2.5 Inch |
| Hand Of Spiral | Right |
| Corner Radius (Decimal) | 0.03 |
| Mill Construction | HP for Steel & Stainless Steel |
| Center Cutting | Yes |
| LOC Designation | Stub |
| Brand Name | Cleveland |
| Mill End Style | Corner Radius |
| Tool Size | 15/32" x 1/2" x 5/8" x 2-1/2" |
| Application | High Performance |
| ECCN | EAR99 |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Type | End Mill |
| Pack Qty | 1 |
| Package Type | Tube |
| Set | No |
| UNSPSC | 27112803 |
| Diameter | 0.4688 |
| Base Item Number | HPEM-3-TA |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Surface Condition | TiAlN |
| Overall Length (Decimal Inch) | 2.5 |
| Shank Configuration | Straight |
| Diameter (Decimal Inch) | 0.4688 |
