Greenfield
B10030

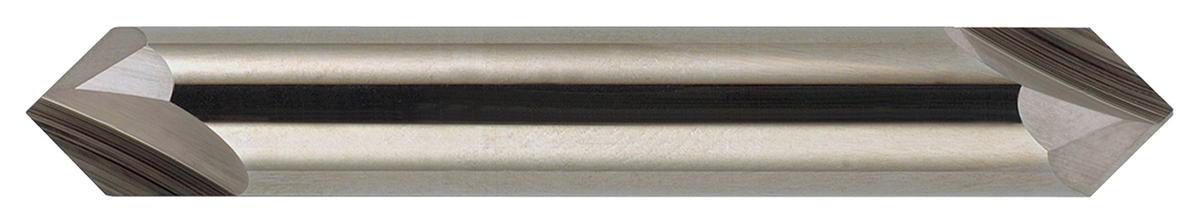

2-Flute Double End Chamfer Tool
Specifications
| Material | Carbide |
|---|---|
| Overall Length (Metric) | 76.2 |
| Short Description | 2-Flute Double End Chamfer Tool |
| Double Ended | Yes |
| Diameter | 0.5 |
| Shank Size | 0.5 |
| Shank Size (Metric) | 12.7 |
| Point Angle | 90 |
| Center Cutting | true |
| Diameter (Metric) | 12.7 |
| Application | General Purpose |
| Mill Construction | Chamfer Mills |
| Surface Condition | Bright |
| UNSPSC | 27112803 |
| Overall Length (Decimal Inch) | 3 |
| Mill End Style | Point |
| Flute Type | Straight |
| Shank Configuration | Straight |
| Pack Qty | 1 |
| Diameter (Decimal Inch) | 0.5 |
| Set | No |
| Hand Of Spiral Cut | STR / RHC |
| Tool Size | 1/2" x 1/2" x 3" |
| ECCN | EAR99 |
