Greenfield
B52490

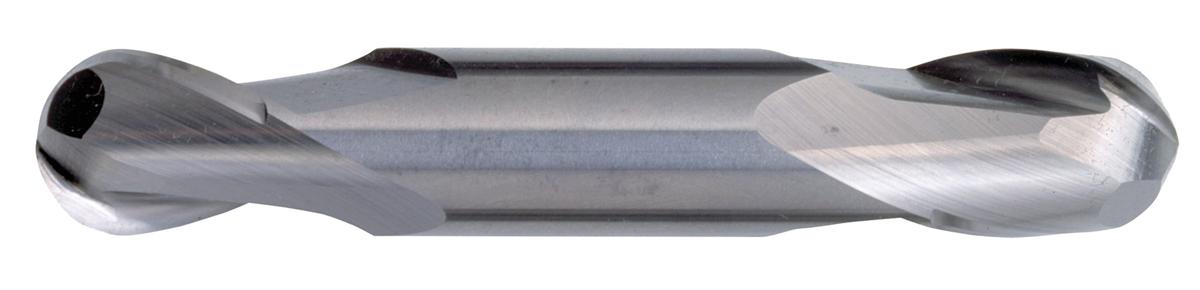

Cleveland 2-Flute Ball Nose General Purpose End Mill
Specifications
| Coating/Finish | Bright |
|---|---|
| Shank Type | Straight w/ Weldon Flat |
| Diameter (Metric) | 6.35 |
| Overall Length (Inch) | 3.5 |
| Length Of Cut (Inch) | 0.63 |
| Double Ended | Yes |
| Overall Length (Metric) | 88.9 |
| Cutting Direction | Right |
| Shank Size (Metric) | 9.52 |
| Type | General Purpose |
| Shank Size (Inch) | 0.38 |
| Material | Carbide |
| Flute Type | Spiral |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/4 |
| Unit Of Measure | Imperial |
| Short Description | 2-Flute Ball Nose General Purpose End Mill |
| Diameter (Decimal Inch) | 0.25 |
| Shank Size (Decimal) | 0.38 |
| Overall Length (Decimal) | 3.5 |
| Diameter (Letter) | E |
| Diameter (Wire) | E |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Mill Construction | General Purpose |
| Center Cutting | Yes |
| LOC Designation | Regular |
| Brand Name | Cleveland |
| Tool Size | 1/4" x 3/8" x 5/8" x 3-1/2" |
| Mill End Style | Ball Nose |
| Application | General Purpose |
| ECCN | EAR99 |
| Tool Type | End Mill |
| Set | No |
| Pack Qty | 1 |
| UNSPSC | 27112803 |
| Package Type | Tube |
| Shank Size | 0.375 |
| Diameter | 0.25 |
| Base Item Number | MDE-2B |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 3.5 |
| Shank Configuration | Straight w/ Weldon Flat |
