Greenfield
B68366

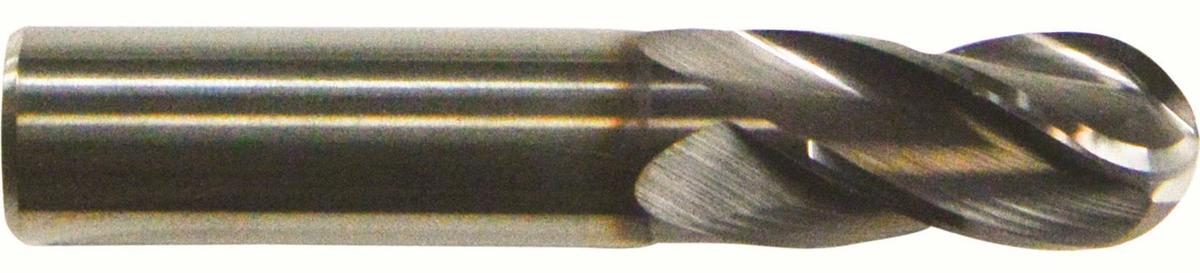

Cleveland 4-Flute Ball Nose Single End General-Purpose End Mill
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Shank Type | Straight |
| Diameter (Metric) | 19.05 |
| Overall Length (Inch) | 5 |
| Length Of Cut (Inch) | 2.25 |
| Double Ended | No |
| Cutting Direction | Right |
| Type | General Purpose |
| Shank Size (Inch) | 0.75 |
| Material | Carbide |
| Flute Type | Spiral |
| Number Of Flutes | 4 |
| Diameter (Inch) | 3/4 |
| Unit Of Measure | Imperial |
| Short Description | 4-Flute Ball Nose Single End General-Purpose End Mill |
| Diameter (Decimal Inch) | 0.75 |
| Shank Size (Decimal) | 0.75 |
| Overall Length (Decimal) | 5 |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Mill Construction | General Purpose |
| Center Cutting | Yes |
| LOC Designation | Long |
| Brand Name | Cleveland |
| Tool Size | 3/4" x 3/4" x 2-1/4" x 5" |
| Mill End Style | Ball Nose |
| Application | General Purpose |
| ECCN | EAR99 |
| Tool Type | End Mill |
| Set | No |
| Pack Qty | 1 |
| UNSPSC | 27112803 |
| Package Type | Tube |
| Shank Size | 0.75 |
| Diameter | 0.75 |
| Base Item Number | MSE-4B-TA |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Surface Condition | TiAlN |
| Overall Length (Decimal Inch) | 5 |
| Shank Configuration | Straight |
