Greenfield
B69002

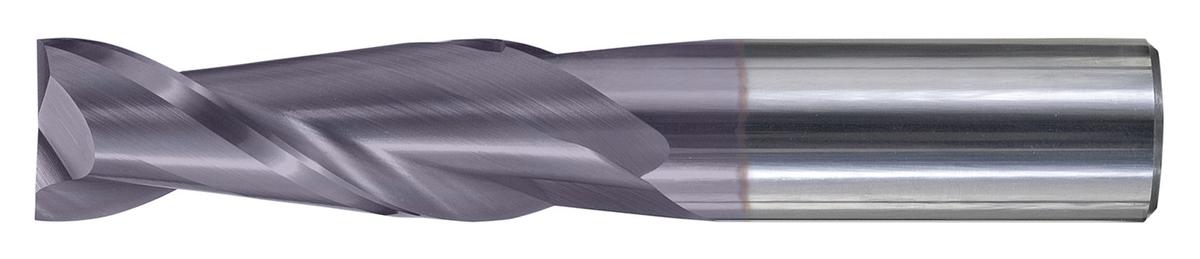

Cleveland 2-Flute Square End Single End General-Purpose End Mill
Specifications
| Shank Size (Inch) | 0.13 |
|---|---|
| Type | General Purpose |
| Shank Type | Straight |
| Overall Length (Inch) | 1.5 |
| Length Of Cut (Inch) | 0.19 |
| Flute Type | Spiral |
| Number Of Flutes | 2 |
| Material | Carbide |
| Coating/Finish | TiAlN |
| Double Ended | No |
| Diameter (Metric) | 1.98 |
| Cutting Direction | Right |
| Diameter (Inch) | 5/64 |
| Unit Of Measure | Imperial |
| Short Description | 2-Flute Square End Single End General-Purpose End Mill |
| Shank Size | 0.13 Inch |
| Overall Length | 1.5 Inch |
| Hand Of Spiral | Right |
| Mill Construction | General Purpose |
| Center Cutting | Yes |
| LOC Designation | Regular |
| Brand Name | Cleveland |
| Mill End Style | Corner Radius |
| Tool Size | 5/64" x 1/8" x 3/16" x 1-1/2" |
| Application | General Purpose |
| ECCN | EAR99 |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Type | End Mill |
| Pack Qty | 1 |
| Package Type | Tube |
| Set | No |
| UNSPSC | 27112803 |
| Diameter | 0.0781 |
| Base Item Number | MSE-2-TA |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Surface Condition | TiAlN |
| Overall Length (Decimal Inch) | 1.5 |
| Shank Configuration | Straight |
| Diameter (Decimal Inch) | 0.0781 |
