Greenfield
C14257

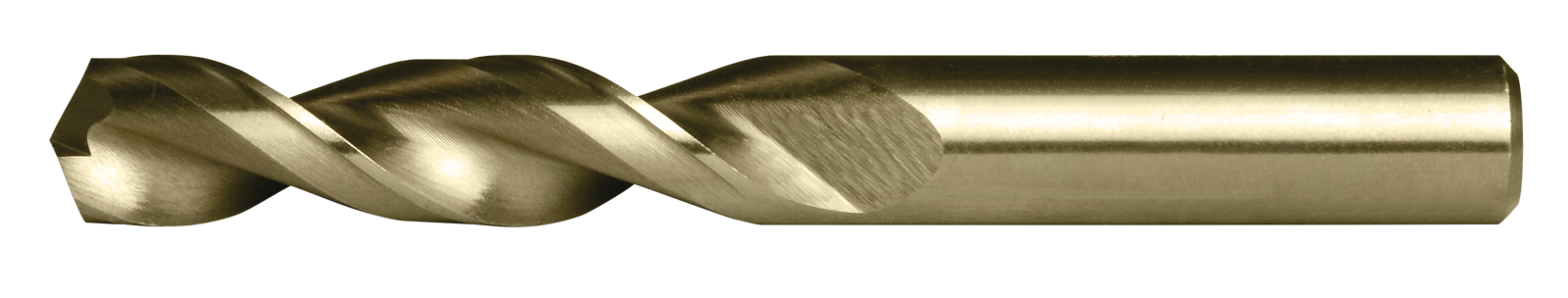

Cleveland Q-Cobalt Wide Land Parabolic Drill
Specifications
| Flute Length (Inch) | 1.13 |
|---|---|
| Flute Length (Metric) | 28.57 |
| Diameter (Metric) | 4.39 |
| Overall Length (Metric) | 55.56 |
| Shank Size (Inch) | 0.17 |
| Material | HSS-CO 8% (M42) |
| Coating/Finish | Straw |
| Diameter (Inch) | 0.173 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 4.39 |
| Unit Of Measure | Wire |
| Flute Type | Spiral |
| Shank Length (Metric) | 26.99 |
| Short Description | Q-Cobalt Wide Land Parabolic Drill |
| Cutting Direction | Right |
| Point Angle | 135 degrees |
| Shank Length (Decimal) | 1.06 |
| Diameter | #17 |
| Flute Length | 1.13 Inch |
| Shank Size | 0.17 Inch |
| Shank Type | Straight |
| Point Type | Split |
| Diameter (Wire) | #17 |
| Drill Style | Screw Machine |
| Drill Construction | Wide Land Parabolic |
| Hand Of Spiral | Right |
| Shank Length | 1.06 |
| Brand Name | Cleveland |
| Hand Of Spiral Cut | RHS / RHC |
| Package Type | Tube |
| Measurement System | Imperial |
| Drill Size System | Wire |
| Tool Type | Drill |
| Shank Length (mm) | 26.99 |
| Point Style | Split |
| Drill Point Angle | 135 |
| Shank Configuration | Straight |
| Double Ended | No |
| Pack Qty | 10 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Base Item Number | 2175 |
| Product Type | Industrial Supplies |
| Unit of Measure | Wire |
| Shank Length (Inch) | 1.0625 |
| Surface Condition | Straw |
| Diameter (Decimal Inch) | 0.173 |
| Set | No |
| Tool Size | #17 |
