Greenfield
C23850

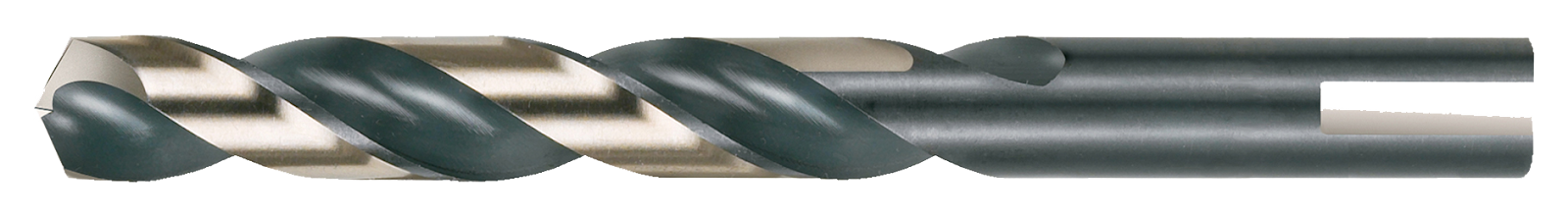

Heavy Duty Mechanics Length Drill
Specifications
| Short Description | Heavy Duty Mechanics Length Drill |
|---|---|
| Flute Length | 2.6875 |
| Shank Size | 0.375 |
| Surface Condition | Black & Gold |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Material | HSS |
| Drill Style | Mechanics Length Drill |
| Shank Length | 1.5625 |
| UNSPSC | 20111614 |
| Overall Length (Metric) | 107.95 |
| Flute Length (Metric) | 68.26 |
| Overall Length (Decimal Inch) | 4.25 |
| Diameter (Metric) | 9.53 |
| Flute Type | Spiral |
| Shank Configuration | Straight w/ 3 Flats |
| Point Style | Split |
| Pack Qty | 6 |
| Hand Of Spiral | Right |
| Shank Length (Metric) | 39.69 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.375 |
| Shank Size (Metric) | 9.52 |
| Point Angle | 135 |
| Diameter | 0.375 |
| Set | No |
| Drill Size System | Fractional |
| Drill Construction | Heavy-Duty |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 3/8" |
| ECCN | EAR99 |
