Greenfield
C23938

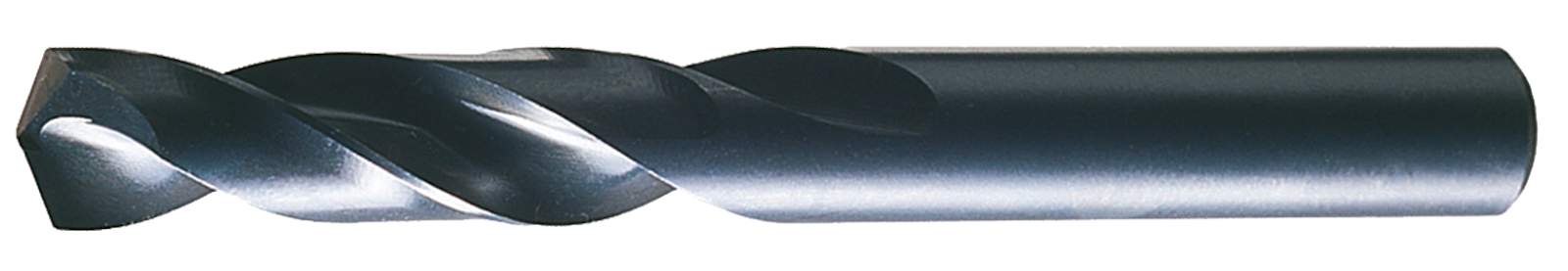

Cle-Line Heavy Duty Screw Machine Length
Specifications
| Flute Length (Inch) | 1.85 |
|---|---|
| Flute Length (Metric) | 47 |
| Diameter (Metric) | 11 |
| Type | Heavy Duty |
| Overall Length (Metric) | 95 |
| Shank Size (Inch) | 0.43 |
| Material | HSS |
| Coating/Finish | Steam Oxide |
| Diameter (Inch) | 0.4331 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 11 |
| Unit Of Measure | Metric |
| Flute Type | Spiral |
| Shank Length (Metric) | 48 |
| Short Description | Heavy Duty Screw Machine Length |
| Cutting Direction | Right |
| Point Angle | 135 degrees |
| Shank Length (Decimal) | 1.89 |
| Diameter | 11 mm |
| Flute Length | 47 mm |
| Shank Size | 11 mm |
| Shank Type | Straight |
| Point Type | Split |
| Drill Style | Screw Machine |
| Drill Construction | Heavy-Duty |
| Hand Of Spiral | Right |
| Shank Length | 1.89 |
| Brand Name | Cle-Line |
| Hand Of Spiral Cut | RHS / RHC |
| Package Type | Tube |
| Measurement System | Metric |
| Drill Size System | Metric |
| Tool Type | Drill |
| Shank Length (mm) | 48 |
| Point Style | Split |
| Drill Point Angle | 135 |
| Shank Configuration | Straight |
| Double Ended | No |
| Pack Qty | 6 |
| ECCN | EAR99 |
| Notes | Sizes smaller than 0.0625 do not have split point |
| UNSPSC | 20111614 |
| Base Item Number | 1896 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 1.8898 |
| Surface Condition | Steam Oxide |
| Diameter (Decimal Inch) | 0.4331 |
| Set | No |
| Tool Size | 11.00mm |
