Greenfield
C24181

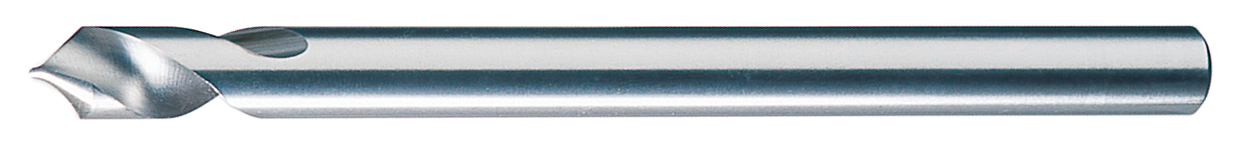

Cleveland HSS NC Long Length Spotting and Centering Drill
Specifications
| Type | Long Length |
|---|---|
| Overall Length (Inch) | 4 |
| Coating/Finish | Bright |
| Shank Size (Inch) | 0.25 |
| Number Of Flutes | 2 |
| Flute Length (Inch) | 1 |
| Shank Size (Metric) | 6.35 |
| Overall Length (Metric) | 101.6 |
| Material | HSS |
| Flute Length (Metric) | 25.4 |
| Point Angle | 90 degrees |
| Diameter (Metric) | 6.35 |
| Diameter (Inch) | 1/4 |
| Short Description | HSS NC Long Length Spotting and Centering Drill |
| Unit Of Measure | Fractional |
| Cutting Direction | Right |
| Diameter (Decimal) | 0.25 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Point Type | Radial |
| Diameter (Letter) | E |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Shank Length (Decimal) | 3 |
| Shank Length (Metric) | 76.2 |
| Drill Construction | Spotting & Centering |
| Drill Style | Spotting Drill |
| ECCN | EAR99 |
| Tool Type | Drill |
| Set | No |
| Pack Qty | 10 |
| UNSPSC | 20111614 |
| Package Type | Tube |
| Diameter | 0.25 |
| Base Item Number | 2645 |
| Brand Name | Cleveland |
| Measurement System | Imperial |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Flute Length | 1 |
| Shank Size | 0.25 |
| Surface Condition | Bright |
| Diameter (Wire) | E |
| Shank Length | 3 |
| Overall Length (Decimal Inch) | 4 |
| Shank Configuration | Straight |
| Point Style | Radial |
| Diameter (Decimal Inch) | 0.25 |
| Drill Size System | Fractional & Letter |
| Tool Size | 1/4"-E |
