Greenfield
C33304

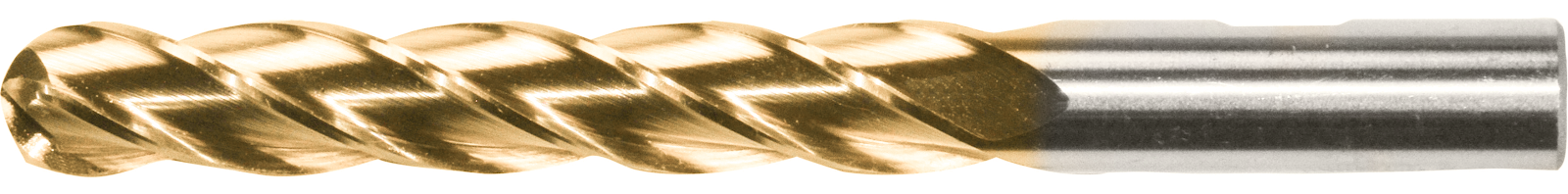

Cleveland HSS Single End Multi-Flute Center Cutting Ball Nose Finisher
Specifications
| Coating/Finish | TiN |
|---|---|
| Shank Type | Straight w/ Weldon Flat |
| Diameter (Metric) | 7.94 |
| Overall Length (Inch) | 2.5 |
| Length Of Cut (Inch) | 0.75 |
| Double Ended | No |
| Cutting Direction | Right |
| Type | General Purpose |
| Shank Size (Inch) | 0.38 |
| Material | HSS |
| Flute Type | Spiral |
| Number Of Flutes | 4 |
| Diameter (Inch) | 5/16 |
| Unit Of Measure | Imperial |
| Short Description | HSS Single End Multi-Flute Center Cutting Ball Nose Finisher |
| Diameter (Decimal Inch) | 0.3125 |
| Shank Size (Decimal) | 0.38 |
| Overall Length (Decimal) | 2.5 |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Mill Construction | General Purpose Finisher |
| Center Cutting | Yes |
| Brand Name | Cleveland |
| Tool Size | 5/16" x 3/8" x 3/4" x 2-1/2" |
| Mill End Style | Ball Nose |
| Mill Style | Finishing End Mill |
| Mill Application | General Application |
| ECCN | EAR99 |
| Tool Type | End Mill |
| Set | No |
| Pack Qty | 1 |
| UNSPSC | 27112803 |
| Package Type | Tube |
| Shank Size | 0.375 |
| Diameter | 0.3125 |
| Base Item Number | HG-4B-TN |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Surface Condition | TiN |
| Overall Length (Decimal Inch) | 2.5 |
| Shank Configuration | Straight w/ Weldon Flat |
