Greenfield
C39023

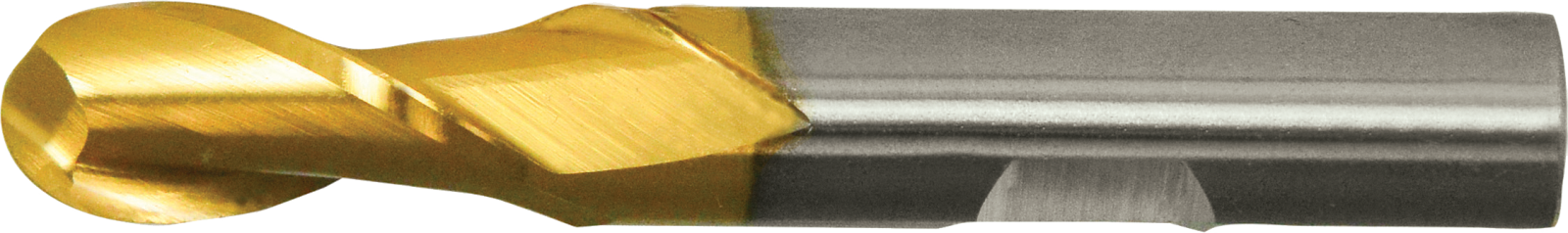

Cleveland HSS Single End 2-Flute Center Cutting Ball Nose Finisher
Specifications
| Coating/Finish | TiN |
|---|---|
| Shank Type | Straight w/ Weldon Flat |
| Diameter (Metric) | 25.4 |
| Overall Length (Inch) | 4.75 |
| Length Of Cut (Inch) | 2.25 |
| Double Ended | No |
| Cutting Direction | Right |
| Type | General Purpose |
| Shank Size (Inch) | 1 |
| Material | HSS |
| Flute Type | Spiral |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1 |
| Unit Of Measure | Imperial |
| Short Description | HSS Single End 2-Flute Center Cutting Ball Nose Finisher |
| Diameter (Decimal Inch) | 1 |
| Shank Size (Decimal) | 1 |
| Overall Length (Decimal) | 4.75 |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Mill Construction | General Purpose Finisher |
| Center Cutting | Yes |
| Brand Name | Cleveland |
| Tool Size | 1" x 1" x 2-1/4" x 4-3/4" |
| Mill End Style | Ball Nose |
| Mill Style | Finishing End Mill |
| Mill Application | General Application |
| ECCN | EAR99 |
| Tool Type | End Mill |
| Set | No |
| Pack Qty | 1 |
| UNSPSC | 27112803 |
| Package Type | Tube |
| Shank Size | 1 |
| Diameter | 1 |
| Base Item Number | HG-2B-TN |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Surface Condition | TiN |
| Overall Length (Decimal Inch) | 4.75 |
| Shank Configuration | Straight w/ Weldon Flat |
