Greenfield
C46277

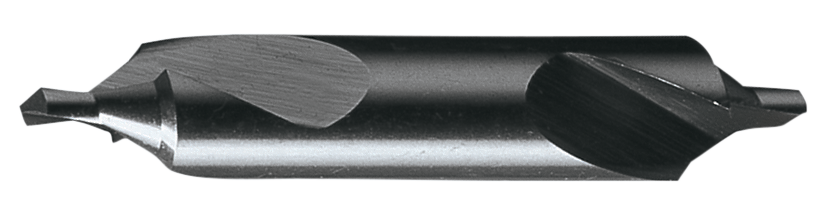

Center Drill - Combined Drill & Countersink - Bell Type
Specifications
| Overall Length (Metric) | 76.2 |
|---|---|
| Shank Size (Metric) | 12.7 |
| Short Description | Center Drill - Combined Drill & Countersink - Bell Type |
| Shank Size | 0.5 |
| Surface Condition | Bright |
| Drill Style | Center Drill |
| Overall Length (Decimal Inch) | 3 |
| Diameter (Metric) | 4.76 |
| Shank Configuration | Straight |
| Pack Qty | 5 |
| Diameter (Decimal Inch) | 0.1875 |
| Body Diameter | 0.5 |
| Diameter | 0.1875 |
| Set | No |
| Drill Construction | Spotting & Centering |
| Hand Of Spiral Cut | RHC |
| Tool Size | #16 |
| ECCN | EAR99 |
