Greenfield
C58450

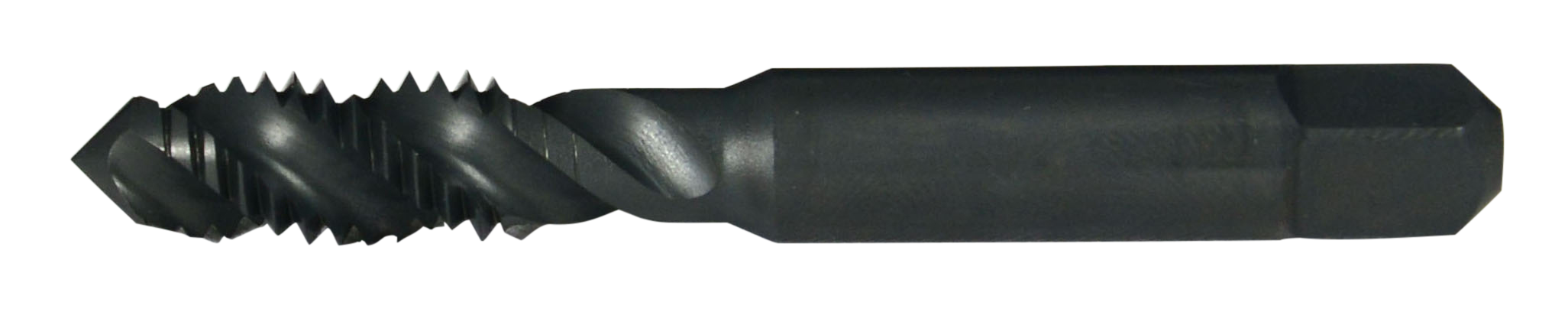

Plug Chamfer Spiral Flute Tap
Specifications
| Diameter (Metric) | 9.53 |
|---|---|
| Material | HSS |
| Overall Length (Metric) | 74.68 |
| Short Description | Plug Chamfer Spiral Flute Tap |
| Thread Tolerance | 2B |
| Thread Pitch | 24 |
| Helix Angle | 45 |
| Diameter | 0.375 |
| Flute Type | Spiral |
| Shank Size (Metric) | 9.68 |
| Hand Of Spiral | Right |
| Operation Type | Blind Hole |
| Tap Blank Construction | USCTI Table 302A |
| Tap Construction | CNC Heavy Duty |
| Tap Ground Threads | Yes |
| Tap Neck Length | 0.51 |
| Tap Spiral Point | No |
| Thread Size Decimal Equiv | 0.375 |
| Tap Style | Spiral Flute Tap |
| Material Application | M: Stainless Steel;P: Steel |
| Tap Interrupted Thread | No |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread Creation | Thread Cutting |
| Double Ended | No |
| ECCN | EAR99 |
| Shank Configuration | Straight w/ Square |
| Pack Qty | 1 |
| Set | No |
| UNSPSC | 27112806 |
| Shank Size | 0.381 |
| Surface Condition | Steam Oxide |
| Overall Length (Decimal Inch) | 2.94 |
| Tap Limit | H3 |
| Shank Square Length | 0.4375 |
| Thread Length | 0.75 |
| Thread Form | UNF |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.375 |
| Application | General Purpose |
| Depth of Cut | 2.5 |
| Tool Size | 3/8-24 UNF |
