Greenfield
C58809

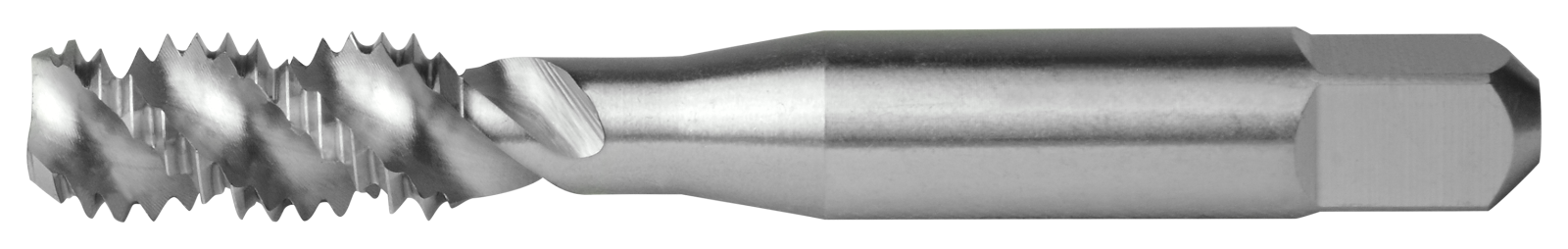

Cleveland Bottoming Chamfer General Purpose High-Spiral Tap
Specifications
| Thread Limit | D5 |
|---|---|
| Number Of Flutes | 3 |
| Diameter (Inch) | 0.2362 |
| Diameter (Metric) | 6 |
| Type | General Purpose |
| Depth Of Cut (Inch) | 2xD |
| Overall Length (Inch) | 2.5 |
| Coating/Finish | Bright |
| Material | HSS |
| Thread Size | M6x1.0 |
| Overall Length (Metric) | 63.5 |
| Thread Standard | Metric |
| Short Description | Bottoming Chamfer General Purpose High-Spiral Tap |
| Thread Tolerance | 6H |
| Chamfer | Bottoming |
| Thread Pitch | 1 |
| Thread Length (Decimal) | 0.63 |
| Helix Angle | 52 degree |
| Diameter | 6 mm |
| Unit Of Measure | Metric |
| Flute Type | Spiral |
| Overall Length | 63.5 mm |
| Cutting Direction | Right |
| Shank Size (Decimal) | 0.26 |
| Shank Size (Metric) | 6.48 |
| Shank Type | Square |
| Hand Of Spiral | Right |
| Operation Type | Blind Hole |
| Shank Square Length (Decimal) | 0.31 |
| Shank Square Width (Decimal) | 0.19 |
| Tap Blank Construction | USCTI Table 302A |
| Tap Construction | High Helix |
| Tap Ground Threads | Yes |
| Tap Neck Length | 0.39 |
| Tap Spiral Point | No |
| Thread Size Decimal Equiv | 0.24 |
| Brand Name | Cleveland |
| Tap Style | Spiral Flute Tap |
| Material Application | N: Non-ferrous Metal;P: Steel |
| Tap Interrupted Thread | No |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread Creation | Thread Cutting |
| Double Ended | No |
| ECCN | EAR99 |
| Shank Configuration | Straight w/ Square |
| Pack Qty | 1 |
| Package Type | Snap Pack |
| Tool Type | Tap |
| Set | No |
| UNSPSC | 27112806 |
| Base Item Number | 1094 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Size | 0.255 |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 2.5 |
| Tap Limit | D5 |
| Shank Square Length | 0.3125 |
| Thread Length | 0.63 |
| Thread Form | Metric |
| Measurement System | Metric |
| Diameter (Decimal Inch) | 0.2362 |
| Application | General Purpose |
| Depth of Cut | 2 |
| Tool Size | M6x1.0 |
