Greenfield
C58906

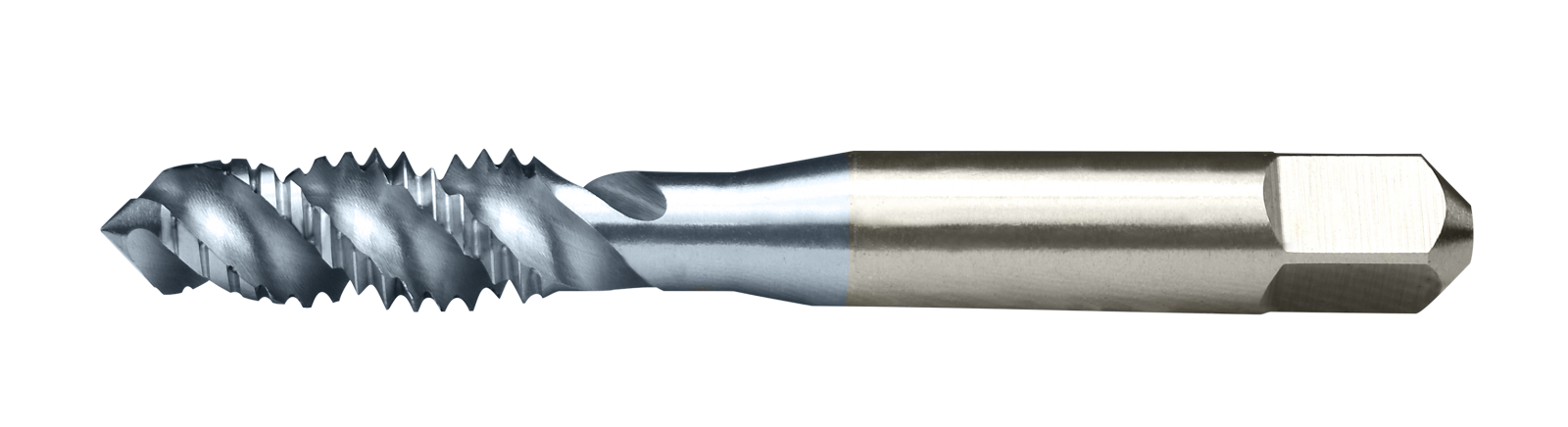

Cleveland Plug Chamfer General Purpose High-Spiral Tap
Specifications
| Thread Limit | D4 |
|---|---|
| Number Of Flutes | 3 |
| Diameter (Inch) | 0.1969 |
| Diameter (Metric) | 5 |
| Type | General Purpose |
| Depth Of Cut (Inch) | 2xD |
| Overall Length (Inch) | 2.38 |
| Coating/Finish | TiCN |
| Material | HSS |
| Thread Size | M5x0.8 |
| Overall Length (Metric) | 60.45 |
| Thread Standard | Metric |
| Short Description | Plug Chamfer General Purpose High-Spiral Tap |
| Thread Tolerance | 6H |
| Chamfer | Plug |
| Thread Pitch | 0.8 |
| Thread Length (Decimal) | 0.5 |
| Helix Angle | 52 degree |
| Diameter | 5 mm |
| Unit Of Measure | Metric |
| Flute Type | Spiral |
| Overall Length | 60.45 mm |
| Cutting Direction | Right |
| Shank Size (Decimal) | 0.19 |
| Shank Size (Metric) | 4.93 |
| Shank Type | Square |
| Hand Of Spiral | Right |
| Operation Type | Blind Hole |
| Shank Square Length (Decimal) | 0.25 |
| Shank Square Width (Decimal) | 0.15 |
| Tap Blank Construction | USCTI Table 302A |
| Tap Construction | High Helix |
| Tap Ground Threads | Yes |
| Tap Neck Length | 0.39 |
| Tap Spiral Point | No |
| Thread Size Decimal Equiv | 0.2 |
| Brand Name | Cleveland |
| Tap Style | Spiral Flute Tap |
| Material Application | N: Non-ferrous Metal;P: Steel |
| Tap Interrupted Thread | No |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread Creation | Thread Cutting |
| Double Ended | No |
| ECCN | EAR99 |
| Shank Configuration | Straight w/ Square |
| Pack Qty | 1 |
| Package Type | Snap Pack |
| Tool Type | Tap |
| Set | No |
| UNSPSC | 27112806 |
| Base Item Number | 1093-TC |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Size | 0.194 |
| Surface Condition | TiCN |
| Overall Length (Decimal Inch) | 2.38 |
| Tap Limit | D4 |
| Shank Square Length | 0.25 |
| Thread Length | 0.5 |
| Thread Form | Metric |
| Measurement System | Metric |
| Diameter (Decimal Inch) | 0.1969 |
| Application | General Purpose |
| Depth of Cut | 2 |
| Tool Size | M5x0.8 |
