Greenfield
C59323

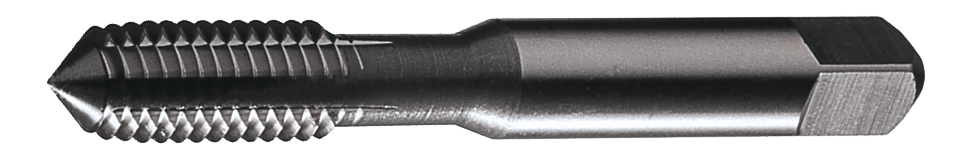

Plug Chamfer General Purpose Forming Tap
Specifications
| Thread Form | UNF |
|---|---|
| Material | HSS |
| Overall Length (Metric) | 74.61 |
| Short Description | Plug Chamfer General Purpose Forming Tap |
| Tap Limit | H7 |
| Shank Size | 0.381 |
| Surface Condition | Bright |
| Tap Style | Thread Forming Tap |
| Double Ended | No |
| Tap Ground Threads | Yes |
| Tap Type | Machine Tap |
| Tap Interrupted Thread | No |
| Thread Pitch | 24 |
| UNSPSC | 27112806 |
| Overall Length (Decimal Inch) | 2.9375 |
| Tap Neck Length | 1.25 |
| Thread Creation | Thread Forming |
| Tap Blank Construction | USCTI Table 302A |
| Shank Square Length | 0.4375 |
| Diameter (Metric) | 9.53 |
| Thread Length | 0.75 |
| Flute Type | Straight |
| Shank Configuration | Straight w/ Square |
| Tap Truncated Threads | No |
| Tap Spiral Point | No |
| Pack Qty | 1 |
| Measurement System | Imperial |
| Operation Type | Blind Hole |
| Diameter (Decimal Inch) | 0.375 |
| Shank Size (Metric) | 9.68 |
| Diameter | 0.375 |
| Application | General Purpose |
| Set | No |
| Thread Size Decimal Equiv | 0.375 |
| Depth of Cut | 2 |
| Tap Construction | CNC |
| Material Application | P: Steel;N: Non-ferrous Metal;M: Stainless Steel |
| Thread Tolerance | 2B-3B |
| Tool Size | 3/8-24 UNF |
| ECCN | EAR99 |
