Greenfield
C60430

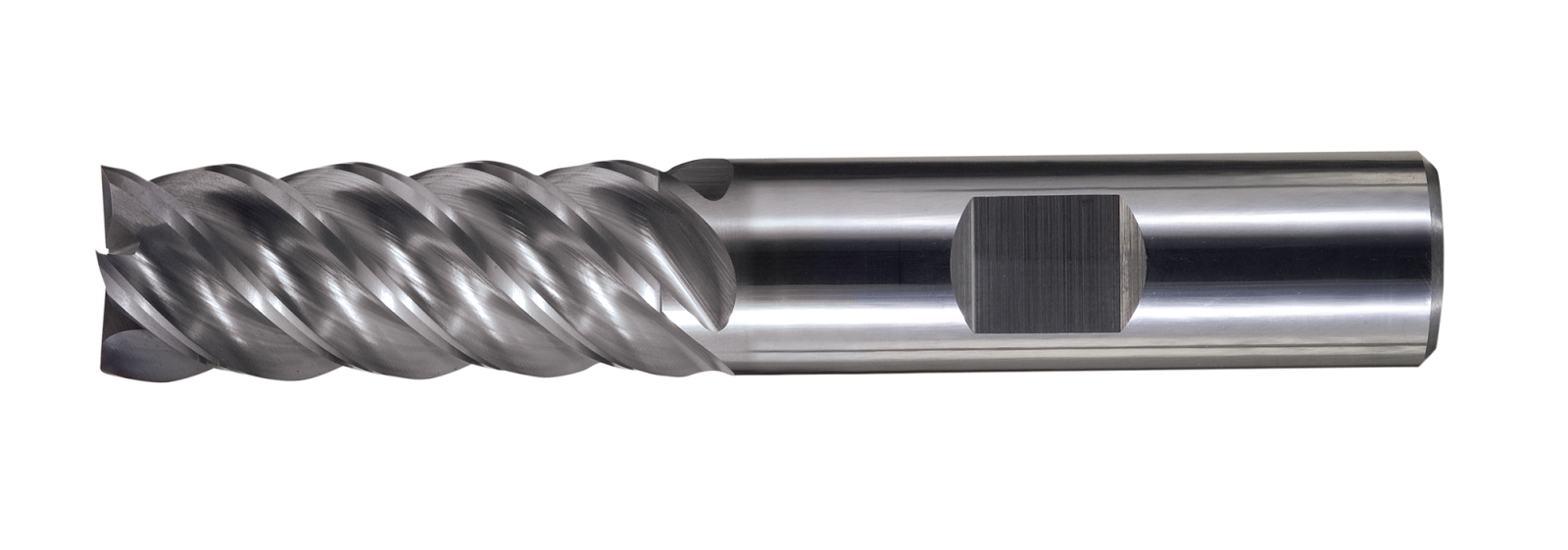

Cleveland 5-Flute High-Performance End Mill for Steel
Specifications
| Shank Size (Inch) | 0.31 |
|---|---|
| Type | High Performance |
| Shank Type | Straight |
| Overall Length (Inch) | 2.5 |
| Overall Length (Metric) | 63.5 |
| Length Of Cut (Inch) | 0.81 |
| Flute Type | Spiral |
| Number Of Flutes | 5 |
| Material | Carbide |
| Coating/Finish | Bright |
| Double Ended | No |
| Diameter (Metric) | 7.14 |
| Shank Size (Metric) | 7.94 |
| Cutting Direction | Right |
| Diameter (Inch) | 9/32 |
| Unit Of Measure | Imperial |
| Short Description | 5-Flute High-Performance End Mill for Steel |
| Shank Size | 0.31 Inch |
| Overall Length | 2.5 Inch |
| Hand Of Spiral | Right |
| Mill Construction | High Helix for Hardened Steel & Stainless Steel |
| Center Cutting | Yes |
| LOC Designation | Regular |
| Brand Name | Cleveland |
| Mill End Style | Square |
| Tool Size | 9/32" x 5/16" x 13/16" x 2-1/2" |
| ECCN | EAR99 |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Type | End Mill |
| Pack Qty | 1 |
| Package Type | Tube |
| Set | No |
| UNSPSC | 27112803 |
| Diameter | 0.2812 |
| Base Item Number | CEM-EMS-5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 2.5 |
| Shank Configuration | Straight |
| Diameter (Decimal Inch) | 0.2812 |
