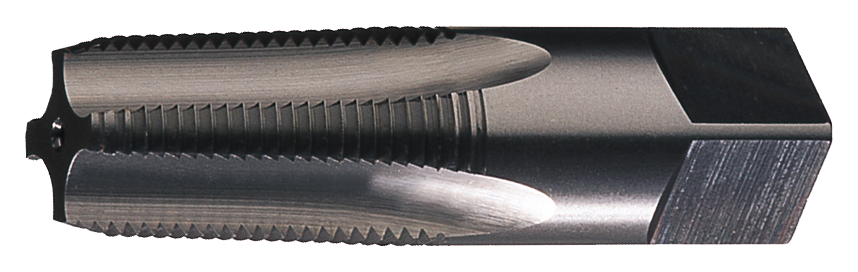

Greenfield
C69322
Taper Pipe Tap
Specifications
| Material | HSS |
|---|---|
| Overall Length (Metric) | 101.6 |
| Flute Type | Straight |
| Diameter (Metric) | 31.75 |
| Short Description | Taper Pipe Tap |
| Diameter | 1.25 |
| Measurement System | Imperial |
| Tool Size | 1 1/4-11.5 NPT |
| Pack Qty | 1 |
| ECCN | EAR99 |
| UNSPSC | 27112806 |
| Shank Size (Metric) | 33.34 |
| Shank Size | 1.3125 |
| Surface Condition | Bright |
| Tap Style | Tapered Pipe Tap |
| Double Ended | No |
| Tap Ground Threads | Yes |
| Tap Type | Pipe Tap |
| Tap Interrupted Thread | No |
| Thread Pitch | 11.5 |
| Overall Length (Decimal Inch) | 4 |
| Thread Creation | Thread Cutting |
| Tap Blank Construction | USCTI Table 311 |
| Shank Square Length | 0.9375 |
| Thread Length | 1.75 |
| Shank Configuration | Straight w/ Square |
| Tap Truncated Threads | No |
| Thread Form | NPT |
| Tap Spiral Point | No |
| Operation Type | Thru Hole |
| Diameter (Decimal Inch) | 1.25 |
| Application | Maintenance |
| Set | No |
| Thread Size Decimal Equiv | 1.25 |
| Tap Construction | Medium Hook Taper |
| Material Application | P: Steel;K: Cast Iron;N: Non-ferrous Metal |
